Zund Esko Colex Cnc Cutter Router Bit End Mill List Of Equivalents

Zund Esko Colex Cutter Router Bit End Mill List Of Equivalents

Zund Router Bit,Esko Router Bit,Colex Router Bit,Router Bit,Zund Bit,Esko Bit,Colex Bit,Cnc Cutter Router Bit,Cnc Router Bit

Zund, Esko (Kongsberg), and Colex CNC routers share highly standardized tooling geometries, meaning many of their solid carbide router bits are functionally identical and fully interchangeable across systems. Most standard bits use a 6mm shank diameter to fit standard industrial collets

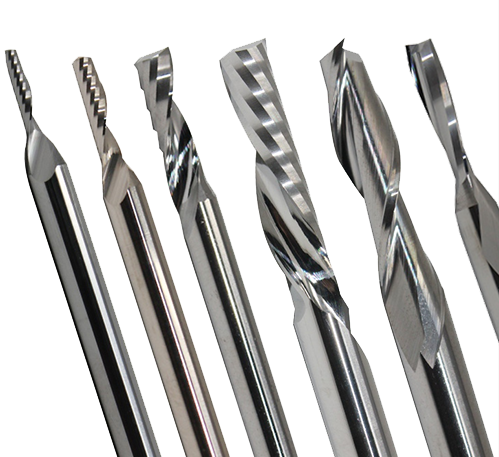

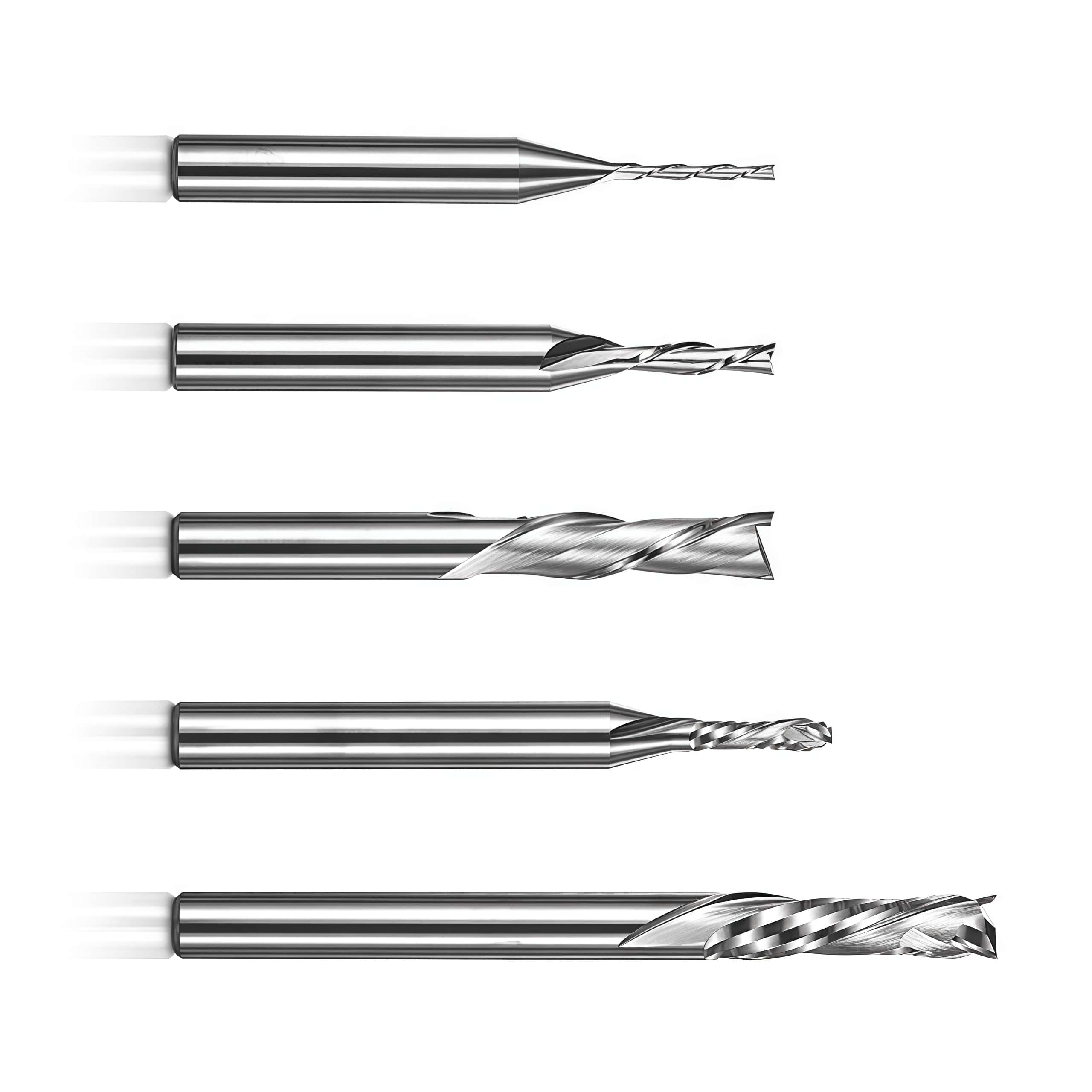

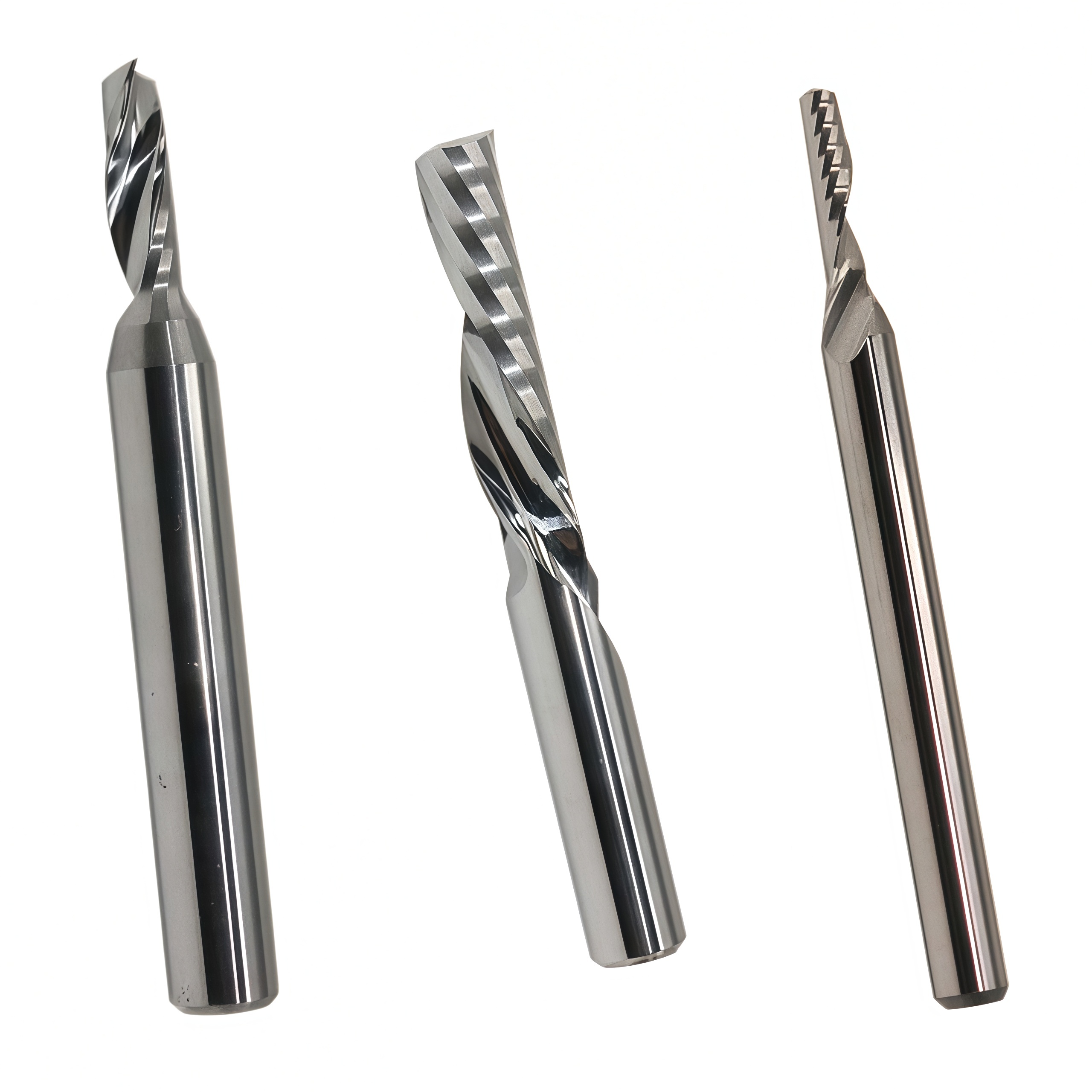

Zund Esko Colex Cutter Router Bit End Mill

Core End Mill Model Interchange Table

Tool diameter / category	feed characteristics	Zund model number (part number)	Esko Kongsberg Model (Part Number)	Colex corresponding models	Applicable Materials and Instructions
2.0 mm universal type	Upcut milling	R202 (5209418) / R112	BIT-MUS06-2006-50 (G42437913)	T00495	Soft plastics, Forex foam board, MDF
2.0 mm acrylic/hard material	Upcut milling	R102 (3910742)	BIT-AUS06-2006-50 (G42437897)	Compatible with 2mm hard material type	Acrylic, aluminum sheet, rigid plastic
3.0 mm universal type	Upcut milling	R203 (5209419) / R113	BIT-MUS06-3011-50 (G42437905)	T00502 / T00499	Advertising signboards, cork, MDF
3.0 mm acrylic/hard material	Upcut milling	R103 (3910743)	BIT-AUS06-3011-50 (G42437889)	Compatible with 3mm hard material type	Acrylic (polished surface), hard plastic
3.0 mm reverse milling type	Downcut milling	R123 (3910747) / R133	BIT-MDS06-3011-50 (G42447342)	Compatible with 3mm reverse milling type	To prevent the top material from fraying and the laminate from being damaged.
4.0 mm deep cut multi-purpose	Upcut milling	R158 (3910796)	BIT-MUS06-4022-50 (G42437863)	T00505	Foamed PVC, thick plastic, cork
4.0 mm standard universal	Upcut milling	R204 / R114	BIT-MUS06-4012-50 (G42437863)	T00508	ACM aluminum composite panel, DiBond, wood
6.0 mm reverse milling type	Downcut milling	R126 (3910750) / R136	BIT-MDS06-6022-58 Corresponding model	T00499 / T00501	Acrylic bottom-cut, thick foam board

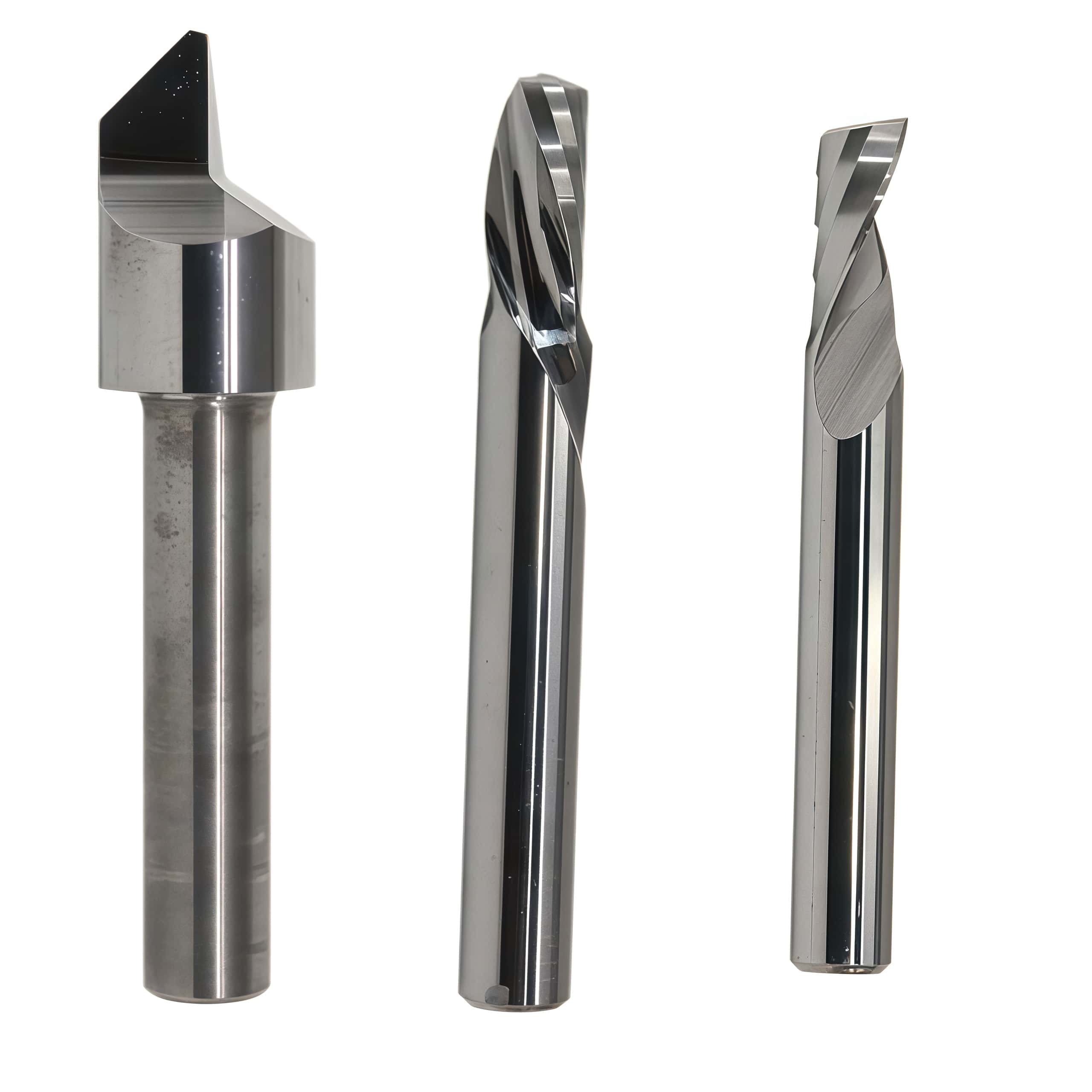

V-Groove Bending Cutter	90° / 120° milling cutter	R141 / R141A	BIT-EBV06 series	T00545 corresponding model	ACM aluminum composite panel edge folding and chamfering

Replacement Selection and Compatibility Recommendations

· Shank Diameter Consistency : Most high-strength single- or double-flute helical end mills in the above comparison table are equipped with a standard 6mm shank diameter . No machine collet (spring collet) replacement is required when interchanged between different brand systems. Distinguishing between soft and hard materials :

o General purpose/soft material cutters (such as Zund R200 series/Esko MUS series) : with a larger front angle and extremely fast chip removal, designed to prevent materials such as PVC foam board and MDF wood board from melting when heated.

o Hard material/acrylic knives (such as Zund R100 series/Esko AUS series) : The cutting edge is precision polished, producing a crystal clear edge when cutting acrylic and aluminum alloys, and the knife is more wear-resistant.
