F1612, F1432, F1330, F1832, F3220, F3232) share a unified, highly adaptable multi-module tool head. Because these machines process everything from thin self-adhesive vinyl up to 2-inch structural foam, blades are grouped exclusively by the specific Tool Module or Tool Holder into which they insert. 1. angential Module & Cutout Tools (Vinyl, Cardboard & Semi-Rigid Media)
Heavy-duty flat-shank blades work with the Tangential Module (500-9310) and specialized holders like the Kiss-Cut Blade Holder (500-3318) or Double Edge Cutout Tool (500-9313):

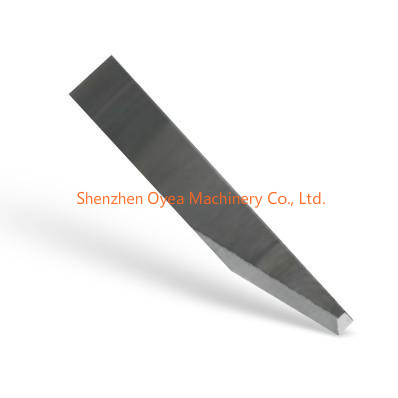

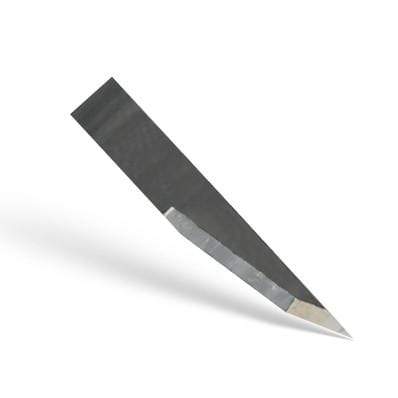

- 36° Tangential Knife Blade (390-534):For high-precision cutting of vinyl, window tint, and masking film (<0.25mm).
- 45° Tangential Knife Blade (390-560):For sandblast resist, heavy card, and reflective sign sheeting.
- 60° Tangential Knife Blade (390-550):Ideal for thick magnetic media, flock, and heavy cardstock.

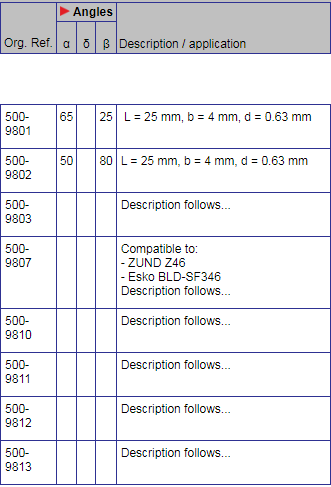

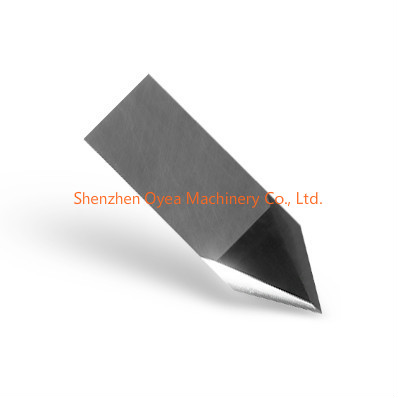

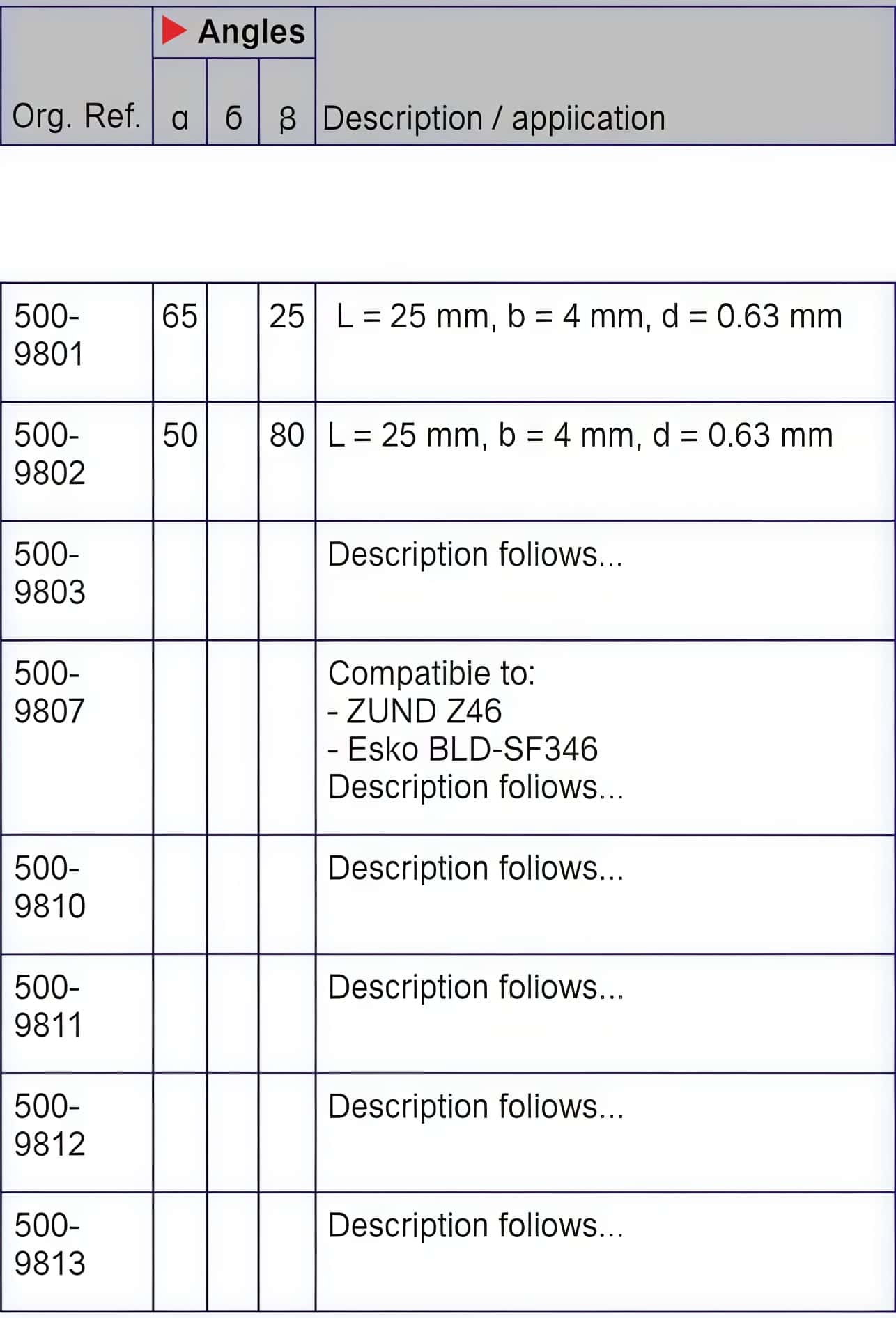

- 50° Double Edge Cutout Knife (500-9802):Cuts folding cardboard, polypropylene, and rigid paperboard up to 3mm.
- 60° Double Edge Cutout Knife (500-9803): Handles tougher materials up to 5mm due to 65° angle with sharp 50° tip.
- 50° Burr-Free Double Edge Knife (500-9804):Prevents burrs in soft plastics like banner vinyl and polycarbonate.
- Heavy-Duty Cutout Blade (45°/90°) (500-9807):Single-pass cutting for rigid materials up to 15mm thick.
2. Oscillating Tool Knives (Corrugated & Foam Boards)
For Pneumatic (POT) and Electronic Oscillating Tools (EOT), these blades perform precise cuts in thick or hollow materials:
- 65° Single Edge Cutout Blade (500-9801):Cuts single/double-wall corrugated boards and foam boards.
- EOT Knife L25 65°-85° (500-9811):25mm blade for intricate profiles in acoustic panels and foam.
- EOT Knife L28 65°-85° (500-9812):Flat-point 28mm blade for dense foams and insulation boards.
- POT Knife Flat Point L27 T0.63 (500-9831):Ultra-thin precision blade for honeycomb boards.
- POT Knife Flat Point L20 T1.5 (500-9832):Thick 1.5mm blade for heavy rubber sheets and structural foam up to 18mm.
3. V-Cut Tool Blades (Beveling & 3D Folding)
V-Cut tools create grooves for folding thick composite sheets into seamless 90° corners:
- Hard Metal V-Cut Blade (500-9826):Heavy-duty tungsten carbide blade for high-friction cuts in paper-foam cores, compatible with multiple angle heads (0°, 15°, 22.5°, 30°, and 45°).
4. Rotary Module Blades (Textiles & Fabrics)
The High Torque Rotary Module (500-9325) uses motorized blades to cut flexible fabrics:
-Decagonal Rotary Blade (500-9860/500-9861): Multi-faceted for textile banners, heavy canvas, flag fabric, and porous mesh.
Essential Flatbed Consumables
- Conveyor Protective Cutting Mat: Prevents damage and ensures proper airflow in vacuum zones.
-Automatic Device Calibration (ADC):Automated depth mapping protects the cutting mat and ensures blade precision.
