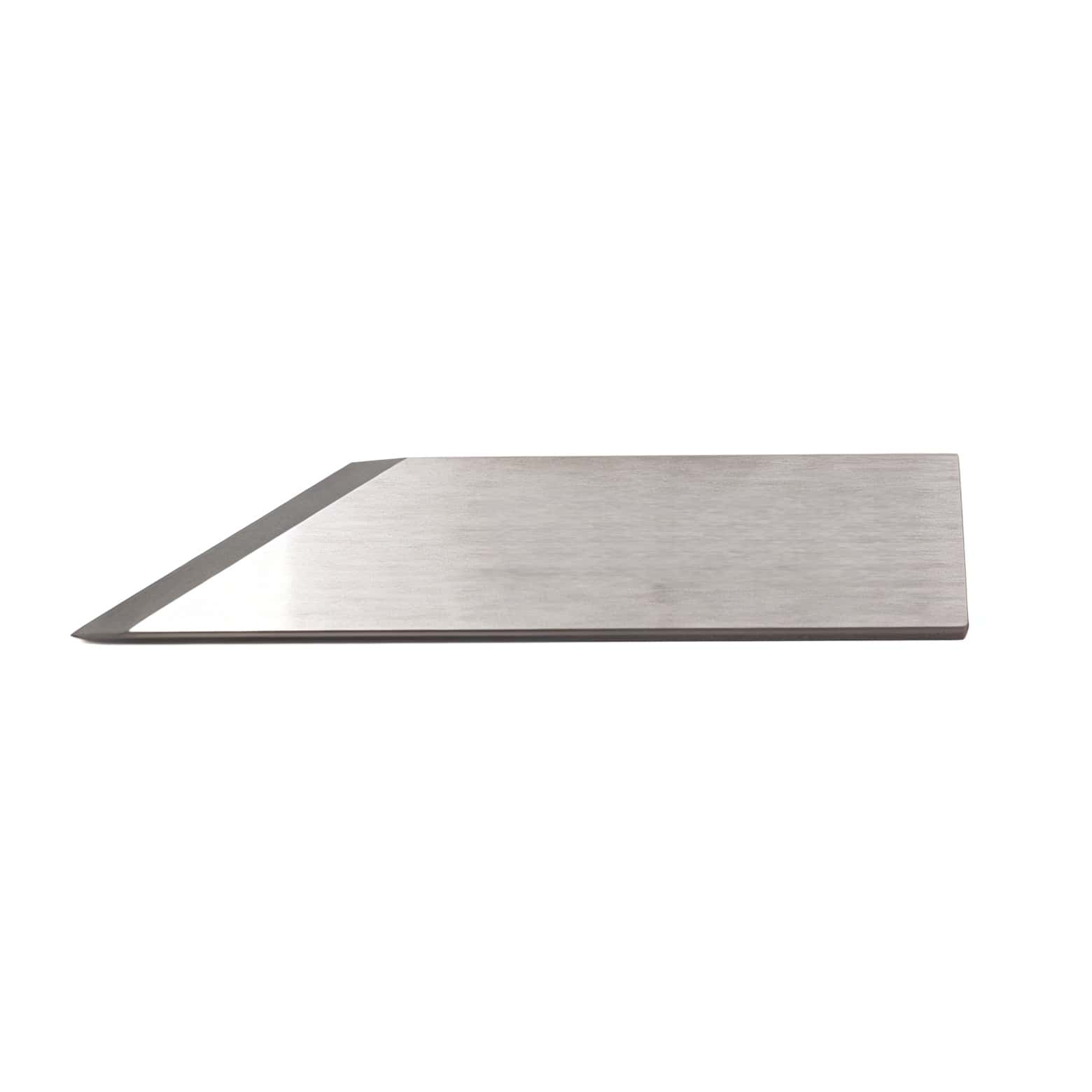

Esko Kongsberg BLD-SF216 iEcho E16 Zund Z16 Colex T00335 Tungsten Carbide Oscillating Knife Blades

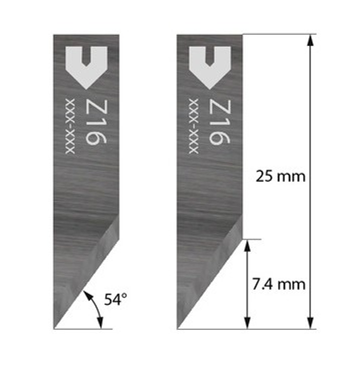

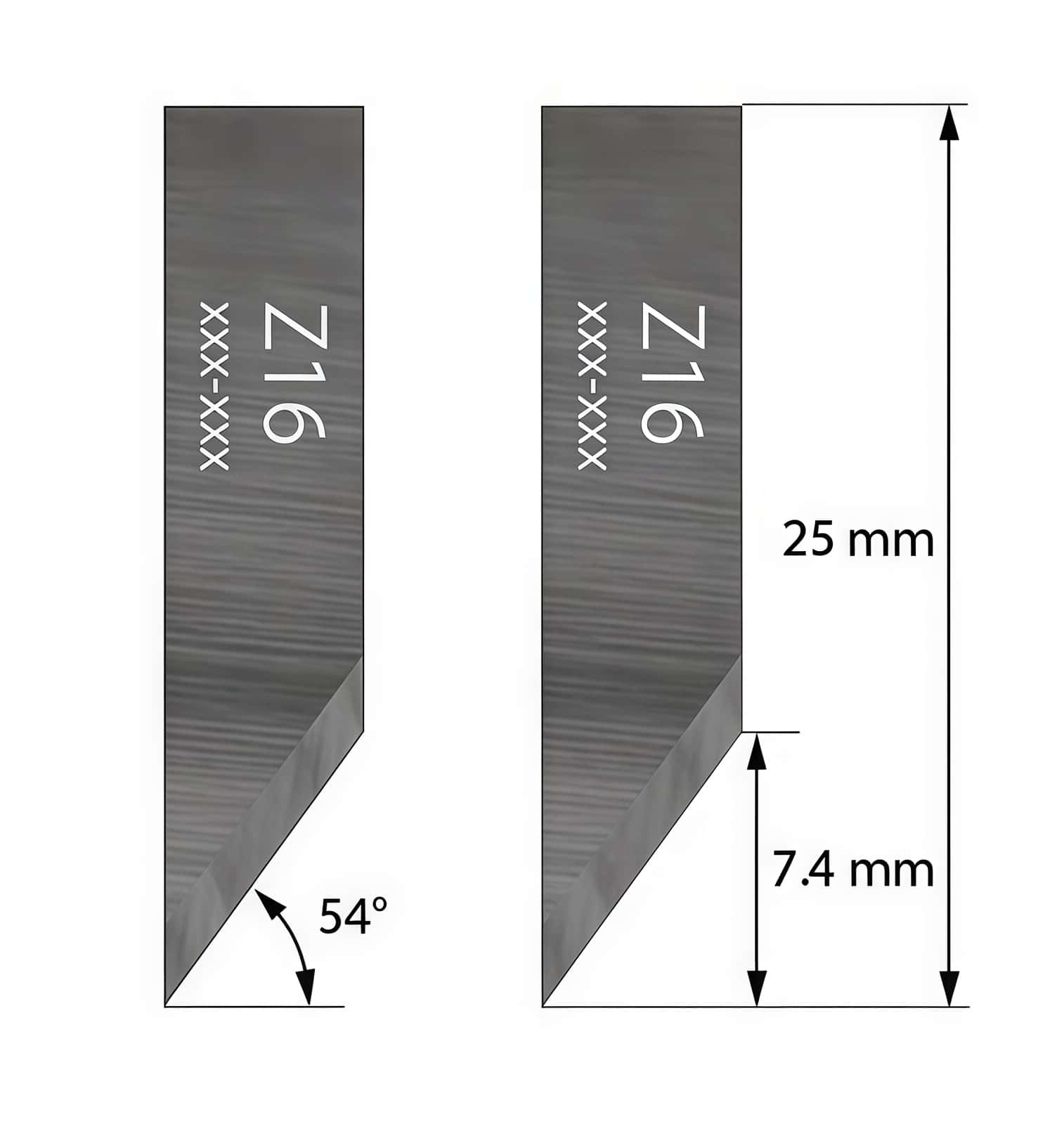

Knife Type: Flat, Oscillating blade, Pointed
Angle: 54°
Knife Length: 25,00mm
Thickness: 0,63mm
Knife/Blade Mounting: flat 0,63 mm
MAX. Cutting Depth: 7,40mm
- Packaging: Single-wall corrugated cardboard, solid paperboard, and folding cartons.
- Graphics & Signage: Self-adhesive vinyl, reflective vinyl film, magnetic foil, PVC banners, and paper.
- Industrial Fabrics: Canvas, mesh, polyester cloth, and thin gasket sheet materials.
Specifications Comparison
|
Blade Model Reference |
Shank Style / Size |
Blade Thickness |
Max Cutting Depth |
Common Tool Compatibility |
|
Flat / 5.65 mm |
0.63 mm |
7.4 mm |
VibraCut / Hi-Force / Static SE |
|
|
Flat / 5.65 mm |
0.63 mm |
7.4 mm |
EOT / EOT-250 / POT / UCT |
|
|
Flat / 5.60 mm |
0.63 mm |
7.4 mm |
iEcho Digital Oscillating Knife Modules |
|
|
Flat / 4.00 mm |
0.40 mm |
3.17 mm (1/8") |
Colex Coroplast Drag Knife Tool |
Replacement for: XZ0016,BT-2316,Esko Kongsberg T16 97AR836 G42441212 42441212 BLD-SF216 i-216,iEcho E16,Mécanuméric 100610440,Zund Z16 3910306,Colex T00335,Gerber MCT SE16,Comarav FN8,Bullmer B16,Blackman & White BW16,Multicam 94-02466-910.306-L,Viliani 002156 – T16,Atom 01039895 01033370
