The model number and part number you provided actually refer to the same high-quality micronized carbide (tungsten carbide) round shank vibrating insert . This is a very classic one-cut-multiple-marks (cross-system compatible) product in the CNC cutting machine field

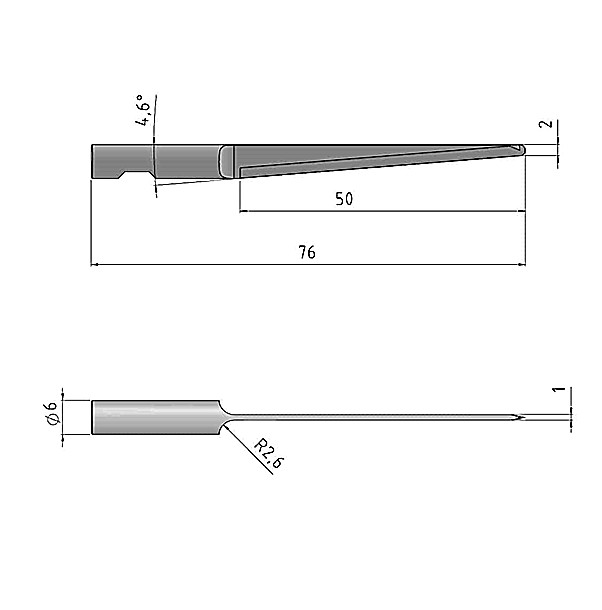

Round Shank Knife Blade, single- edged, oscillating, rounded tip
Diameter
6,00mm
Overall Length
76,0mm
Cutting Lenght
50,0mm
Cutting Angle
85,5°
Geometry
1 Cutting edge, Rounded tip
Applicable Processing Materials: With a cutting capability of 50mm depth and a round-head single-blade design, this tool is extensively used for precise digital punching of medium-to-high thickness non-metallic materials, including:
Packaging and Paper Products: Such as heavy-duty honeycomb board, thick corrugated cardboard, and foam board.
Flexible and Composite Materials: Ideal for high-density sponge and foam fabrication, car floor mats, leather, and rubber.
Industrial Composites: Suitable for thick PVC sheets, soft gaskets, magnetic foil, reflective film, among others.
Equivalent to: MultiCam 84-00193-BT-572050, Summa 500-9835, Summa 500-0835, AXYZ B1041L-50
Diameter
6,00mm
Overall Length
76,0mm
Cutting Lenght
50,0mm
Cutting Angle
85,5°
Geometry
1 Cutting edge, Rounded tip
Core Technical Specifications
- Shank Style : 6.00 mm round shank (usually with a flat Weldon joint to prevent the blade from rotating during high-speed vibration).
- Cutting edge performance : Single-edged , Oscillating .
- Tip Geometry : Rounded Point/Rounded Tip reduces scratching and resistance when cutting loose or high-density materials.
-
Core dimensions :
- Maximum cutting depth : 50 mm (suitable for deep cutting of thick materials)
- Overall blade length (OAL) : Approximately 76 mm
- Blade thickness : 1.00 mm
- Material : High-density solid tungsten carbide , which is wear-resistant and does not easily deform under high-frequency vibration.
Applicable Processing Materials: With a cutting capability of 50mm depth and a round-head single-blade design, this tool is extensively used for precise digital punching of medium-to-high thickness non-metallic materials, including:
Packaging and Paper Products: Such as heavy-duty honeycomb board, thick corrugated cardboard, and foam board.
Flexible and Composite Materials: Ideal for high-density sponge and foam fabrication, car floor mats, leather, and rubber.
Industrial Composites: Suitable for thick PVC sheets, soft gaskets, magnetic foil, reflective film, among others.
Equivalent to: MultiCam 84-00193-BT-572050, Summa 500-9835, Summa 500-0835, AXYZ B1041L-50
