Zund multipurpose router Zund ACM router Zund Acrylic Aluminium router Differences and router models

Zund offers various router bits and router modules designed for different materials and purposes, including multipurpose routing, acrylic routing, and aluminum composite material (ACM) routing.

Differences in Zund Router Bits by Material:

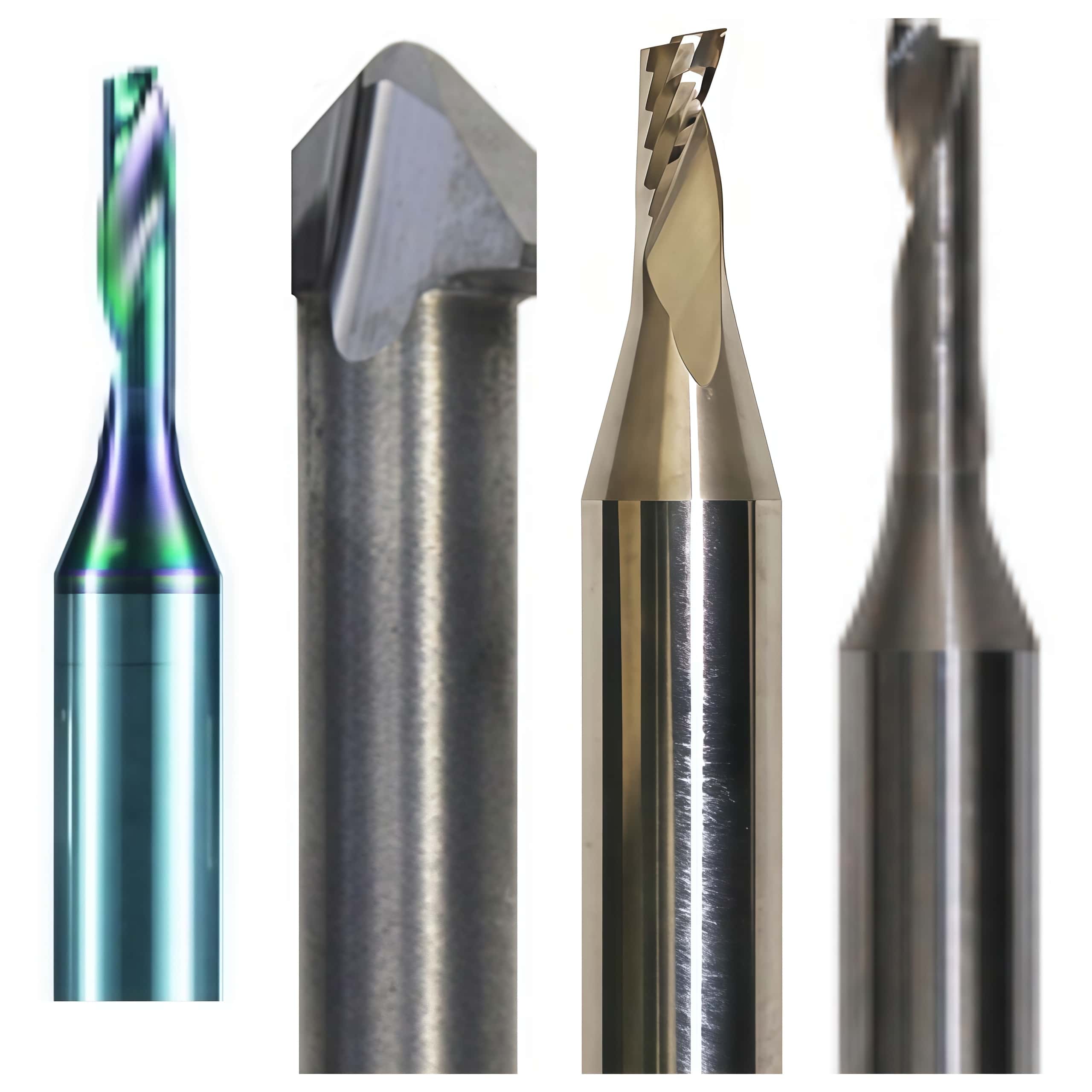

· Multipurpose Router Bits (e.g., R203, R204, R503): Suitable for both soft and hard materials including acrylic, Dibond, aluminum (with minimum quantity lubrication), plastics, and MDF. These bits vary in diameter and cutting depth, offering versatility for multiple routing, engraving, and drilling tasks.

· Acrylic Router Bits (e.g., R108, R141, R202): Specialized bits for fine-detail routing, engraving, and V-groove engraving primarily on acrylic and similar plastics. They feature different geometries like spiral milling or single O-flute up-cut bits optimized for clean cuts on acrylic materials.

· ACM Router Bits (e.g., R208, R209): Spiral milling bits specifically optimized for routing aluminum composite materials (ACM) with diameters typically around 3-4 mm and cutting depths up to 8 mm.

Zund Router Modules:

· Router Modules (RM): Used for milling, engraving, and polishing a variety of materials including plastics, aluminum, wood, and composites. These modules typically have spindle power from 1 kW and feature active cooling systems for heat and waste management. Compatible with Zund G3 and D3 cutter series.

· The router modules handle 2.5D milling with a maximum milling depth of around 25 mm.

Popular Zund Cutter Models with Router Capability:

· Zund G3: This is the best-selling flatbed cutter model offering solid build quality designed for 24/7 operation. It supports modularity allowing for various tool modules including routers specific for acrylic, aluminum, and multipurpose routing tasks.

Summary Table of Selected Zund Router Bits:

In summary:

The Zund G3 cutter series is the most popular model offering robust functionality for industrial and commercial cutting and routing, with modular tool heads including routers for diverse applications.

These distinctions help users select the correct router and bit based on the material—whether general-purpose routing, acrylic-specific, or aluminum composite routing is required. The Zund G3 with its router module offers a flexible and automated platform for these routing tasks.

If more detail on specific router models or compatibility with Zund cutter series is needed, that can be explored further

Zund Multipurpose Router, ACM Router, and Acrylic Aluminium Router spare parts catalog and consumables are available for production, manufacturing, and wholesale supply directly from Shenzhen Oyea Machinery Co., Ltd. Catering to both OEM and ODM requirements, their offerings focus on delivering high-quality, compatible, and applicable solutions for replacement needs at competitive unit prices.

Shenzhen Oyea's global division, OYEA Knives, specializes in designing, manufacturing, and distributing a wide array of standard and custom leather-cutting knives and blades. These products are engineered to consistently surpass OEM standards, ensuring exceptional performance and durability. With a commitment to accessibility, the company facilitates efficient shipping to major regions worldwide, including Europe, the Americas, the Middle East, and Asia. Supported by robust customer service, they aim to provide seamless transactions and timely deliveries.

OYEA's products have gained widespread acclaim across diverse global markets. Their clientele spans key European countries like Germany, France, the United Kingdom, Poland, Russia, Italy, Spain, Hungary, Switzerland, and the Netherlands. In the Americas, they serve nations such as the United States, Canada, Mexico, and Brazil. Additionally, the Middle Eastern markets of Turkey, the United Arab Emirates, and Saudi Arabia are well-represented in their distribution network. Across the Asia-Pacific region, their products are utilized in Vietnam, Thailand, Indonesia, Singapore, South Korea, Japan, Taiwan, Hong Kong, India, Malaysia, and the Philippines. Australia also remains prominent among their customer base.

By consistently upholding stringent quality standards and adopting a customer-centric approach, Shenzhen Oyea continues to expand its global reach while catering to the specific needs of industries reliant on precision leather-cutting tools.
