ZUND Z601 Z602 Z603 Z604 Z605 Z606 Z607 Z608 Tungsten Carbide Cutter Cutting Blades Knives
ZUND Z601 through Z608 are tungsten carbide cutting blades designed for Zund CNC digital cutting systems, primarily used as oscillating knives for heavy-duty materials. These blades offer high wear resistance and precise cutting performance on foams, composites, and thick substrates. They differ in dimensions, cutting depth, and angle to suit various applications.
Blade Specifications
Z601 to Z608 blades typically feature HSS or carbide construction with varying lengths from 83mm to over 100mm, thicknesses around 1.5-5.7mm, and cutting depths ranging from 56mm to 111.5mm. For example, Z606 measures 83×5.7×1.5mm with a 71.5mm cut depth and 45° angle, ideal for sharp oscillating cuts. Z602 provides the deepest cut at 111.5mm for extra-thick materials.
Applications
These blades excel in oscillating mode for dense, fibrous, or layered materials like foam, rubber, carbon fiber, and honeycomb boards. Sharp profiles (e.g., Z602, Z604, Z606) handle intricate contours, while flat versions (e.g., Z603, Z605) ensure stable penetration on rigid substrates. They outperform standard drag knives in durability for industrial production.
Key Differences
|

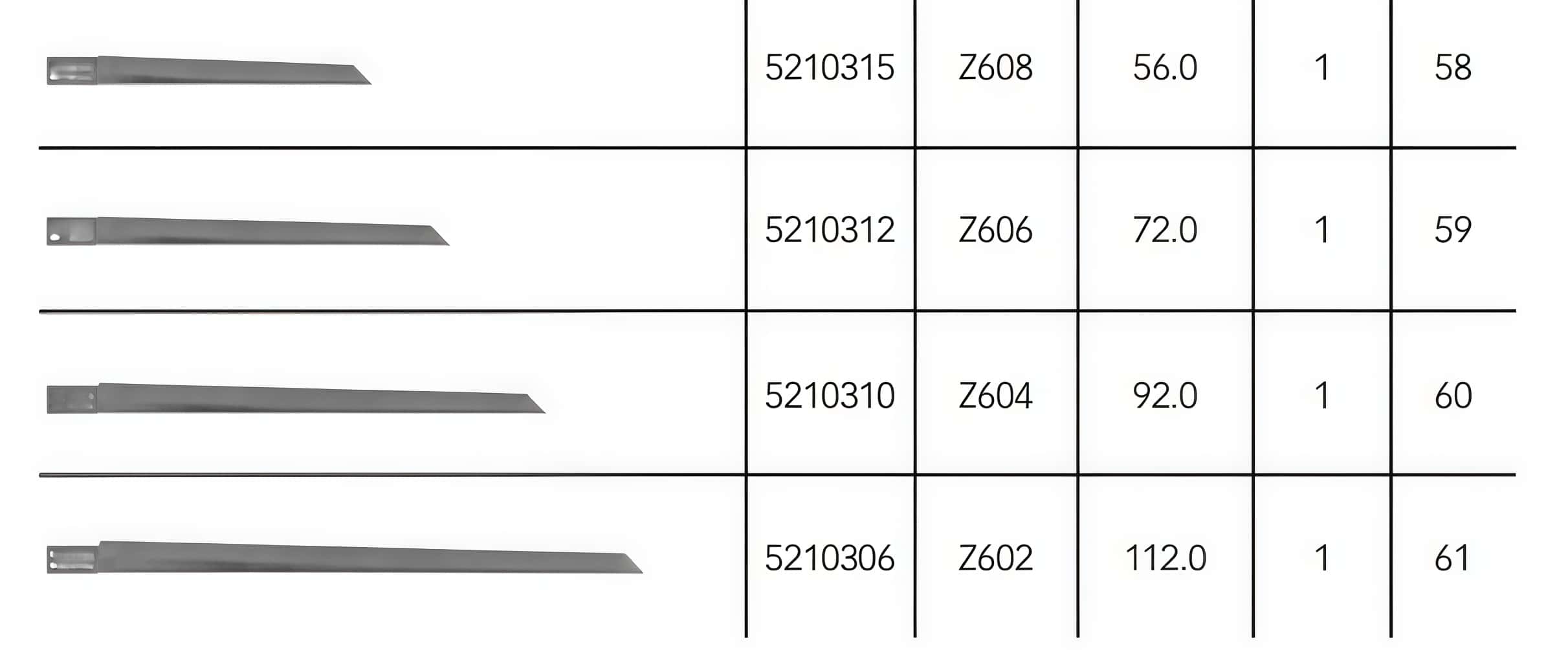

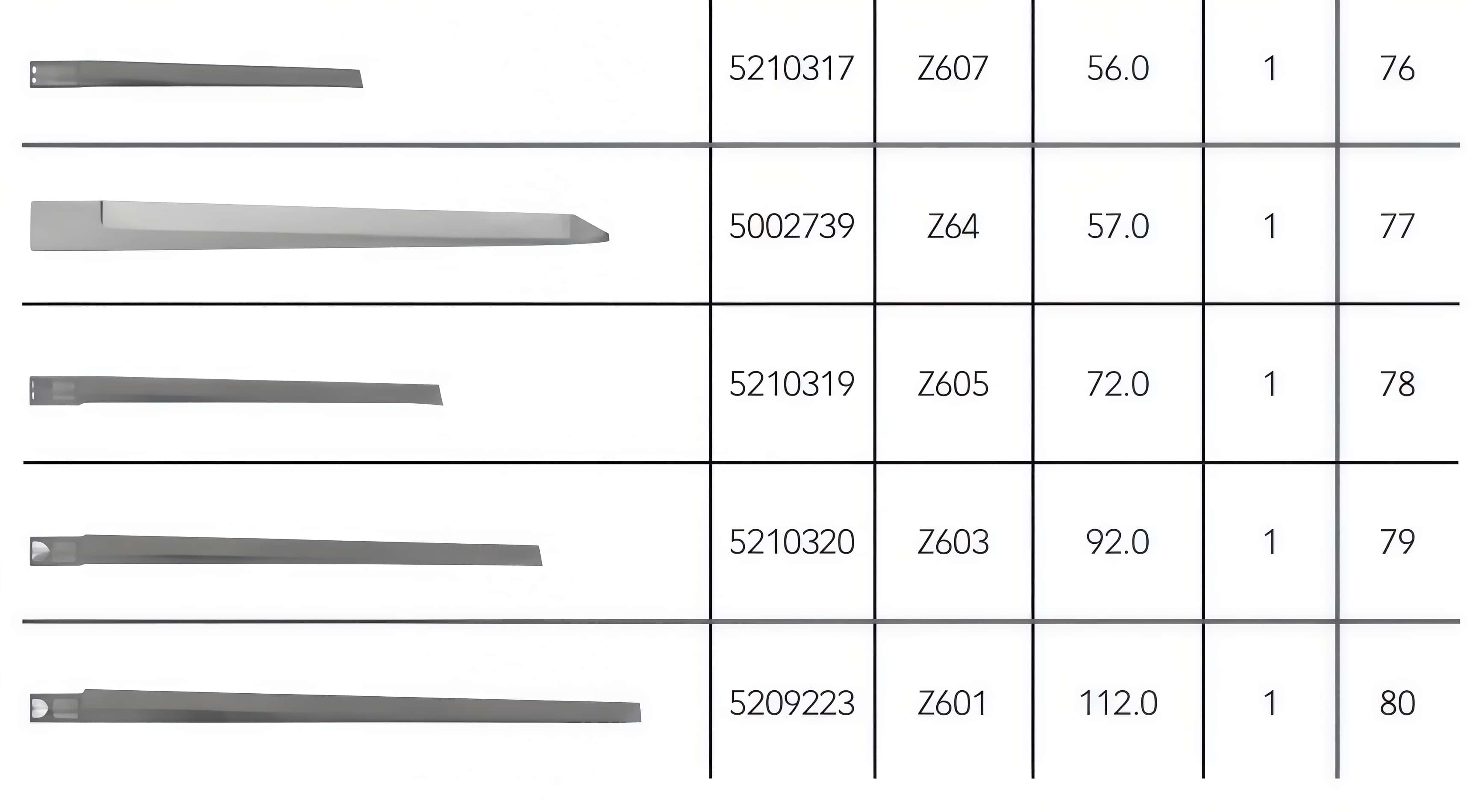

Model |
Type |
Max Cut Depth |
Notes |
|
Oscillating |
~71-91mm |
Heavy-duty, tungsten carbide |
|
|
Sharp Osc. |
111.5mm |
Deepest cut, foams/composites |
|
|
Z603 |
Flat Osc. |
91.5mm |
Stable for thick layers |
|
Sharp Osc. |
91.5mm |
Precision fibrous materials |
|
|
Flat Osc. |
71.5mm |
Rigid substrates |
|
|
Sharp Osc. |
71.5mm |
||
|
Flat/Non-Osc. |
56mm |
Reduced vibration |
|
|
Oscillating |
Varies |
Custom heavy-duty variants |
