Round Point (Round Tip)Cnc Tungsten Carbide Oscillating Knife Blades(Knives)

Round Point (Round Tip) Tungsten Carbide Oscillating Knife Blades are specialized CNC cutting tools engineered for high-frequency electric or pneumatic oscillating tool heads. Enquire now

Description

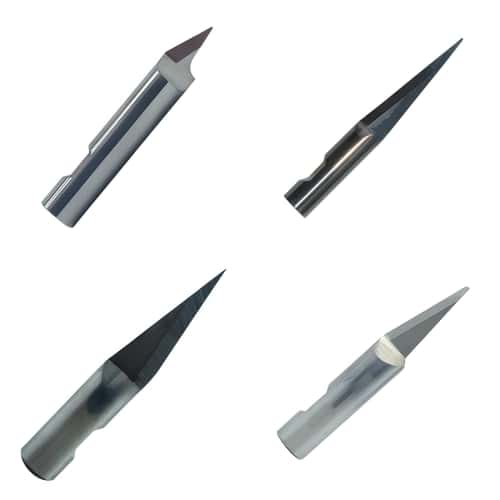

Round Point (Round Tip)Cnc Tungsten Carbide Oscillating Knife Blades(Knives)

6mm Round Point Osc. Knife
10mm Round Point Osc. Knife
15mm Round Point Osc. Knife
20mm Round Point Osc. Knife
25mm Round Point Osc. Knife
50mm Round Point Osc. Knife
70mm Round Point Osc. Knife
90mm Round Point Osc. Knife
.......

Round point (round tip) CNC tungsten carbide oscillating knife blades are high-precision cutting tools engineered for digital flatbed cutters. The rounded geometry places the tip at the center of rotation. This design allows the blade to smoothly pass through thick, flexible, or multi-layered substrates without tearing, snagging, or melting the material.

Key Specifications & Configurations

Material Composition: Solid micro-grain or fine-grain tungsten carbide (cobalt-bonded) for maximum wear resistance and edge retention.
Shank Styles: Typically a 6mm round shank style, though flat-sided shank variations exist depending on the tool holder system.
Common Cutting Lengths (CL): Available in various lengths spanning 5mm, 6mm, 20mm, 25mm, 50mm, and up to 115mm for deep-profile cuts.
Tip Alignment: Center-of-rotation geometry ensures maximum trajectory accuracy during complex curved trajectories on tangential axes.

Material Compatibility

These blades are designed to process soft, flexible, semi-rigid, or multi-layer composite materials, including:

Corrugated media: Corrugated board, cardboard, folding cartons, and honeycomb paper.
Foams: Soft foams, polyethylene (PE) foam, EVA, and foam core boards.
Plastics & Rubbers: Corrugated plastic, soft PVC, gasket materials, and synthetic rubber.
Textiles & Packaging: Technical textiles, carbon fiber cloth, heavy felt, and composite packaging materials.

Major CNC Machine & Blade Cross-Compatibility

Round point carbide blades are universally adapted via cross-referenced part numbers across major digital cutting brands:

AXYZ: BT-57275 (B1041L-6), BT-57268 (B1041L-25), BT-572050 (B1041L-50), and BT-572115 (B1041L-115).
MultiCam: 84-00193-BT-57268 (K8/K10 series) and 84-00193-BT572050 (K13 series).
Summa: 500-9835 / 500-0835.
Aristo: 7354 (000007354) / XK3025-ORP.
Other Systems: Kuris (78558), Valiani (001897),

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM cutting knives and blades. All of our standard cutting knives are manufactured to exceed the exact OEM standards.
