Iecho E22c Oscillating Cutting Knife Blades-Replacement For Kongsberg Bld-Sf422 Zund Z22

iEcho E22C oscillating knife blade is a tungsten steel / carbide oscillating blade for iEcho flatbed cutting systems, and the listing tied to this model shows a 7.7 mm cutting depth.

Enquire now

Description

iEcho E22C Oscillating Knife Blades

Iecho E22c Oscillating Cutting Knife Blades

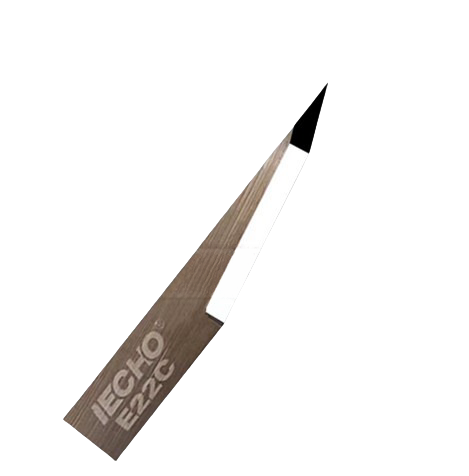

The iEcho E22C (also cataloged simply as the E22) is a specialized, flat-stock tungsten carbide oscillating knife blade designed for iEcho automated digital flatbed cutters. It features a unique pointed, double-angled nose profile engineered specifically for Electric Oscillating Tools (EOT) and Pneumatic Oscillating Tools (POT).

The defining benefit of the E22C is its ability to handle intricate, small-radius details while providing a deeper maximum cut than its sibling blade, the E20C.

Technical Specifications & Geometry

Manufacturer datasheets from industrial CNC tooling providers like Shenzhen Oyea detail the exact dimensions of this blade:

Blade Height: 25.00 mm
Blade Width: 4.00 mm
Shank / Mount Thickness: 0.63 mm flat-stock shank
Cutting Angles: 63° / 79° (Double-angle pointed tip geometry)
Maximum Cutting Depth: 14.00 mm

Exact Cross-Brand Equivalents

Because digital flatbed cutters frequently use standardized clamping configurations on their oscillating heads, the E22C has 1:1 cross-brand physical drop-in equivalents. It is 100% physically interchangeable with the following brand-specific part numbers:

TC knife blade T22,XZ0022,BT-2382,Esko Kongsberg BLD-SF422 i-422 G42458265,Zund Z22 3910315,Gerber MCT SE21 895022,Summa L25 500-9810 500-0810,Blackman & White BW22,iEcho E22,Mécanuméric 100610380 COMPO008758,Aristo 910.315,Gunnar GZ22

Material Applications

The 63° / 79° cutting geometry is optimized to strike a balance between structural strength and nimble direction changes. This makes it a preferred choice for medium-density flexible materials that require clean edges without tearing or pulling, such as:

Signage & Display: Light foam core, foam board, and thick KT boards.
Packaging: Honeycomb cardboard, corrugated plastic sheets (PP), and folding carton stock.
Industrial & Textiles: Dense industrial felt, conveyor belt rubber, and magnetic foils
