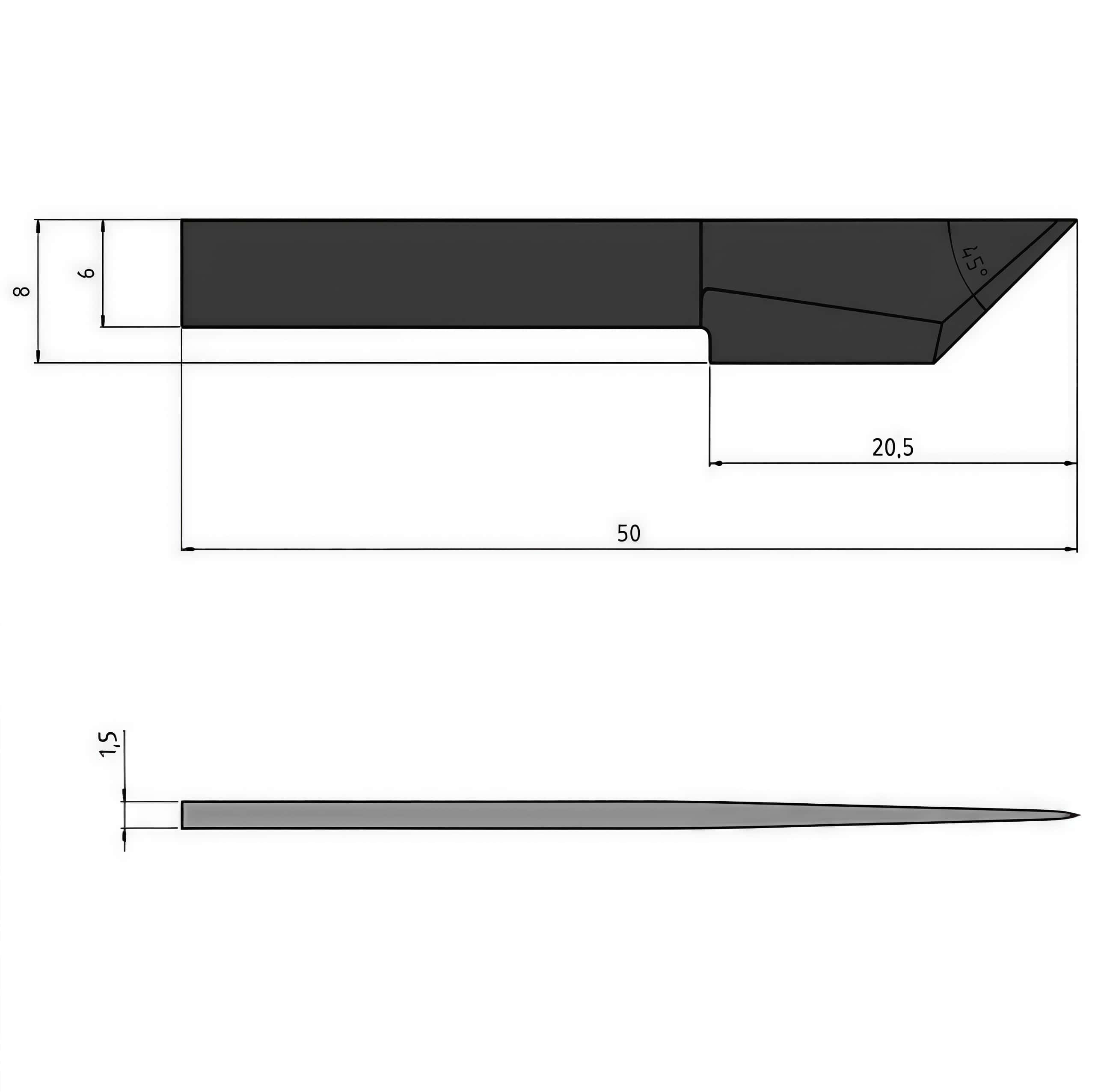

Width
1,5mm
Height
6,0mm
Overall Length
50,0mm
Cutting Lenght
20,5mm
Cutting Angle
45°
Geometry
2 Cutting edges
Primary Material Applications
This blade's thick 1.5 mm core prevents deflection when slicing dense or multi-layered substrates, making it the industry standard for:
- Foam Board & Insulation: Handles Gatorfoam, foamcore, and light architectural foams.
- Corrugated Materials: Cleanly punches through heavy honeycomb cardboard (like Re-board) and thick plastic Coroplast.
- Industrial Plastics: Optimal for thick PVC foam sheets (Sintra), expanded polystyrene, and heavy styrene.
- Heavy Fabrics & Canvas: Easily cuts thick PVC banners, tarpaulins, and industrial carpets without material snagging.
Replacement For:Zund Z46 4800073 Summa 500-9807 Esko Kongsberg BLD-SF346 i-346 G42458406 Colex T00330 Blackman & White BW46 iEcho E46C Comagrav E46 Gerber MCT SE346 895346 Aristo 4800.073-AR35 Heavy Duty Cutout Knife Blade
Zund Z46 Summa 500-9807 Esko BLD-SF346 Colex T00330 iEcho E46C Heavy Duty Cutout Knife Blade is a high-quality product manufactured by Shenzhen Oyea Machinery Co., Ltd. The company specializes in production, wholesale, supply, and sales, offering OEM and ODM services for various accessories and consumables.
Shenzhen Oyea Machinery Co., Ltd. caters to diverse market needs across Europe, the United States, the Middle East, and Asia. Its well-established global presence ensures supply to numerous countries, including Germany, France, the UK, Poland, the USA, Russia, Vietnam, Thailand, Indonesia, Singapore, the Netherlands, Switzerland, South Korea, Japan, Turkey, the Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, and the Czech Republic. This expansive network demonstrates their dedication to fostering long-term collaborations with international partners.
