Aristo 7180 7181 7598 Cutter Round Shank Shaft Knife Blades Difference Table

Aristo offers a range of cutter blades, including models 7180, 7181, and 7598, each designed for specific applications and materials.

Notes:

• Shank Diameter: All three blades have a 6 mm shank diameter, making them compatible with tools designed for this specification.

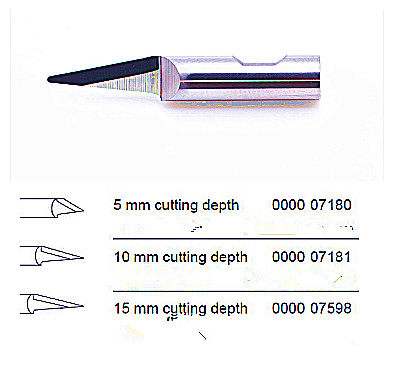

• Cutting Depth: Each blade offers an approximate cutting depth of 5 mm, suitable for medium-depth cutting tasks.



• Angle: The 25° angle provides a balance between sharpness and durability, accommodating various materials.



• Recommended Materials: While 7180 is explicitly recommended for materials like gasket materials, solid carton, foam board, corrugated board, and packaging material, 7181 and 7598 are designed for similar applications, though specific materials are not detailed in the available sources.



• Special Features: All three blades incorporate an enhanced wedge angle to improve cutting edge stability and reduce the risk of breakage. Additionally, they feature an extra ground tip to enhance cutting speed.






  Cross-Platform Compatibility

  Because the 6mm round shank is an industry-standard interface, these specific blade profiles are highly cross-compatible with other major automated flatbed cutters:


  • MultiCam Tooling: The Aristo 7180 serves as a drop-in replacement for the MultiCam K2 (84-00193-BT-57275). The 7598 maps exactly to MultiCam 003612-Mc7265.
  • AXYZ Routers: Fully functional within AXYZ machines using part number designations B1041L (for 7180) and B1041L-15 (for 7598).

  •

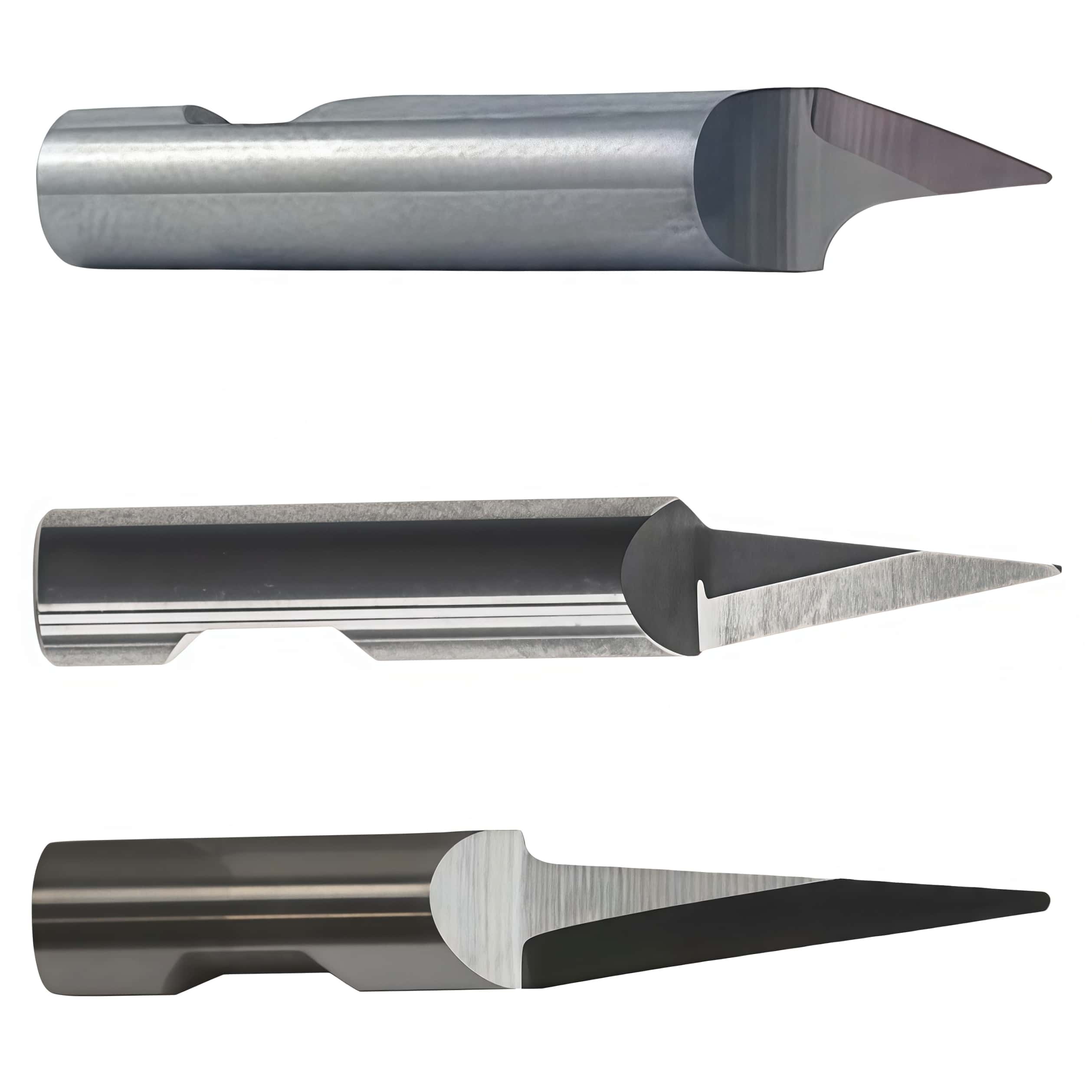

    Aristo 7180,000007180,0000 07180 Cutter Round Shank Shaft knife Blade

  •
    Aristo 7181,000007181,0000 07181 Cutter Round Shank Shaft knife Blade

  •
    ARISTO 7598,000007598,0000 07598 Cutter Round Shank shaft Knife Blade
