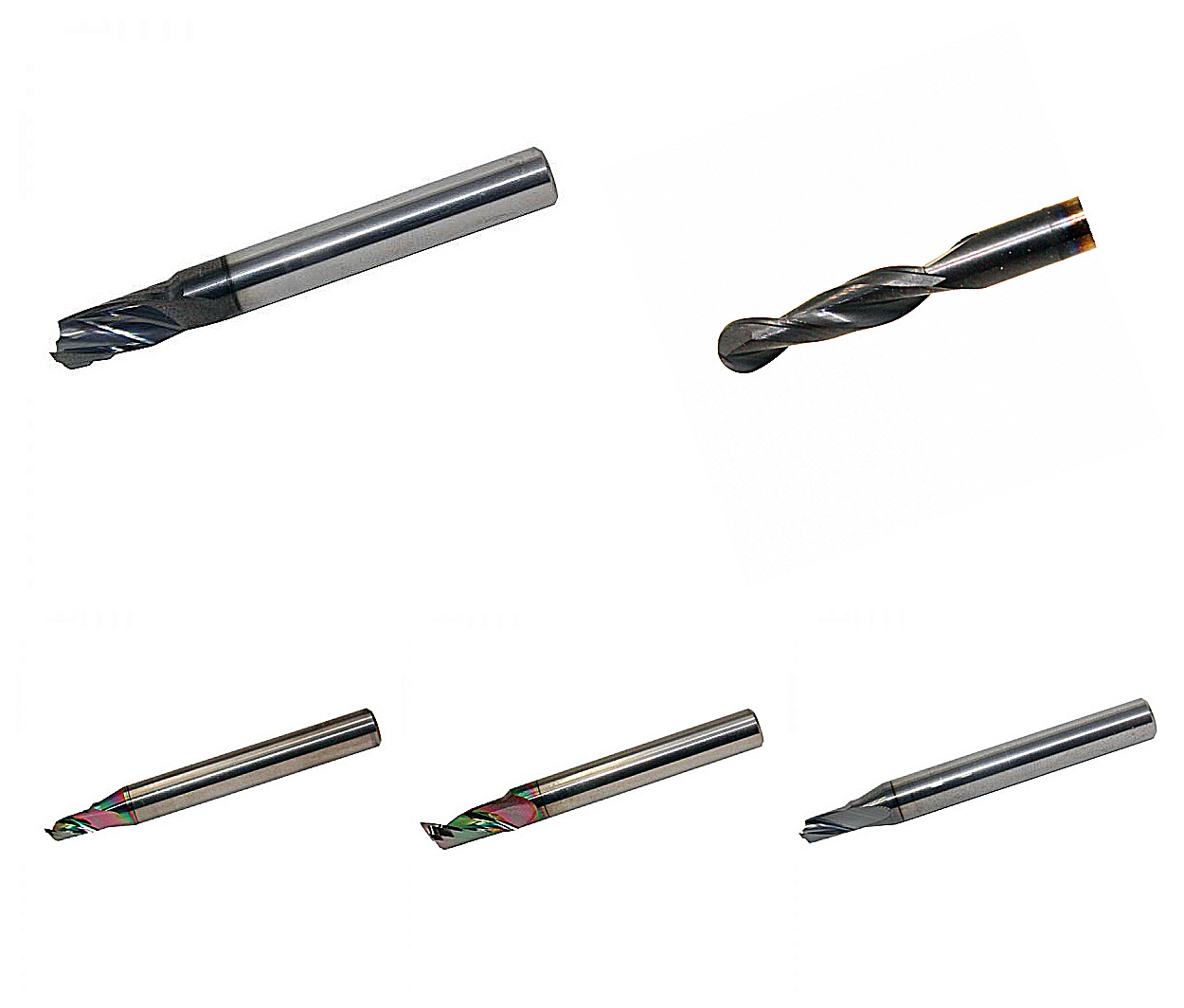

Colex Routing Systems T00525 T00530 T00555 T00527 T00532 Coated Router Bit Specifications and Differences
Here is a detailed comparison of the Colex router bits T00525, T00530, T00555, T00527, and T00532 based on their specifications, sizes, applications, and differences:
Colex Router Bits Specifications and Differences
|
Model |
Shank Diameter |
Cutting Diameter |
Cut Length / Depth |
Flutes |
Bit Type |
Application / Material Suitability |
Special Features / Notes |
|
6 mm |
4 mm |
12 mm |
1 |
Upcut |
Soft/hard plastic, soft/hard wood, acrylic, aluminum, ACM |
Superior coated, 3x bit life, dry/wet cutting |
|
|
6 mm |
6 mm |
12 mm |
1 |
Upcut |
Aluminum, ACM, acrylic, soft/hard plastics |
3x bit life, dry/wet cutting |
|
|
6 mm |
4 mm |
6 mm |
1 |
Upcut |
Aluminum, ACM |
Dry or wet cutting |
|
|
6 mm |
6 mm |
12 mm |
1 |
Upcut |
Aluminum, ACM |
Dry or wet cutting |
|
|
1/8 inch (approx. 3.175 mm) |
1/2 inch (approx. 13 mm) |
13 mm |
2 |
Ball Nose End Mill |
3D routing in wood, sintra, PVC, sign foam, composites |
DLC coated, specialty bit for 3D routing |
Key Differences:
· Size and Diameter: T00525 and T00530 have a 4 mm cutting diameter, while T00527, T00532 have a larger 6 mm diameter, suitable for bigger cuts. T00555 is a ball nose bit with a larger diameter (~13 mm) designed for 3D routing.
· Cut Length: T00525 and T00527 offer a 12 mm cut length, T00530 has a shorter 6 mm cut length, and T00555 has a 13 mm cut length.
· Bit Type and Use: T00525, T00527, T00530, and T00532 are primarily upcut router bits for cutting aluminum, ACM (Aluminum Composite Material), acrylic, and plastics, with dry or wet cutting capability. T00555 is a specialty ball nose bit for 3D routing in various materials including wood and composites.
· Coating and Durability: T00525 and T00527 are noted for superior coating and longer bit life (3x bit life). T00555 features DLC coating for durability in 3D routing.
· Application Focus: T00525 and T00527 are versatile for aluminum, ACM, acrylic, and plastics; T00530 and T00532 focus on aluminum and ACM; T00555 is specialized for 3D contouring and shaping.
Summary
· Use T00525 or T00527 for durable, versatile cutting in aluminum, ACM, acrylic, and plastics with longer bit life.
· Use T00530 or T00532 for smaller diameter cuts in aluminum and ACM.
· Use T00555 for 3D routing tasks requiring ball nose bits in wood, sintra, PVC, and foam materials.
This comparison helps select the appropriate Colex router bit based on size, material, and cutting needs.
