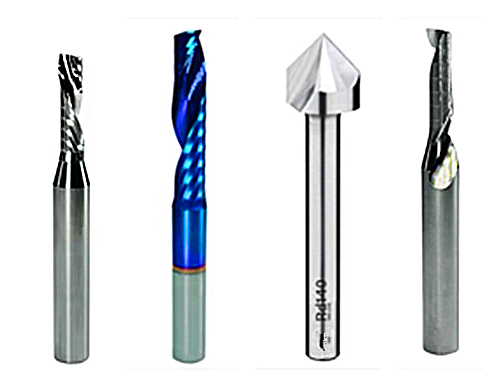

Bit Type |
Zund Model |
Esko Kongsberg Model |
Colex Model |
Summa Model |
|
|
3.0 mm |
Up Cut |
R103 / 3910743 R113 / 3910763 |
Esko BIT-MUS06-3011-50 / G42437905 Esko BIT-AUS06-3011-50 (i-8085) / G42437889 |
|
|
|
|
3.0 mm |
Down Cut |
R123 / 3910747 R133 / 3910767 |
Esko BIT-MDS06-3011-50 / G42447342 Esko BIT-ADS06-3011-50 / G42443358 |
|
|
|
|
4.0 mm |
Up Cut |
R157 |
BIT-MUS06-4012-50 |
|
|
|
|
5.0 mm |
Down Cut |
R174 |
BIT-MDS06-5022-60 |
|
|
|
|
6.0 mm |
Up Cut |
R100/R116 |
BIT-MUS06-6022-58 |
T00501 |
|
|
|
6.0 mm |
Down Cut |
R126 |
BIT-MDS06-6020-64 |
T00499 |
500-9881 |
|
|
10.0 mm |
V-Cut (90°) |
R141 |
BIT-EBV06-90/16-2F |
T00545 |
500-9863 |
Shank Diameter: Most of these cutting bits are designed with a standard 6 mm shank diameter, which is a widely accepted size for numerous machining applications. This dimension allows them to be effortlessly installed into standard collets, ensuring smooth and secure compatibility across multiple equipment configurations, thereby minimizing the need for custom solutions.
Material Suitability: The adaptability of these bits extends into their capabilities with a diverse array of materials. They are skillfully manufactured to handle cutting tasks across a wide spectrum, including but not limited to acrylic sheets, lightweight yet sturdy aluminum, Dibond (a popular aluminum composite material), PVC, foam-based substrates, and various types of wood. This wide-ranging versatility makes these tools indispensable for industries requiring precision across multiple material types.

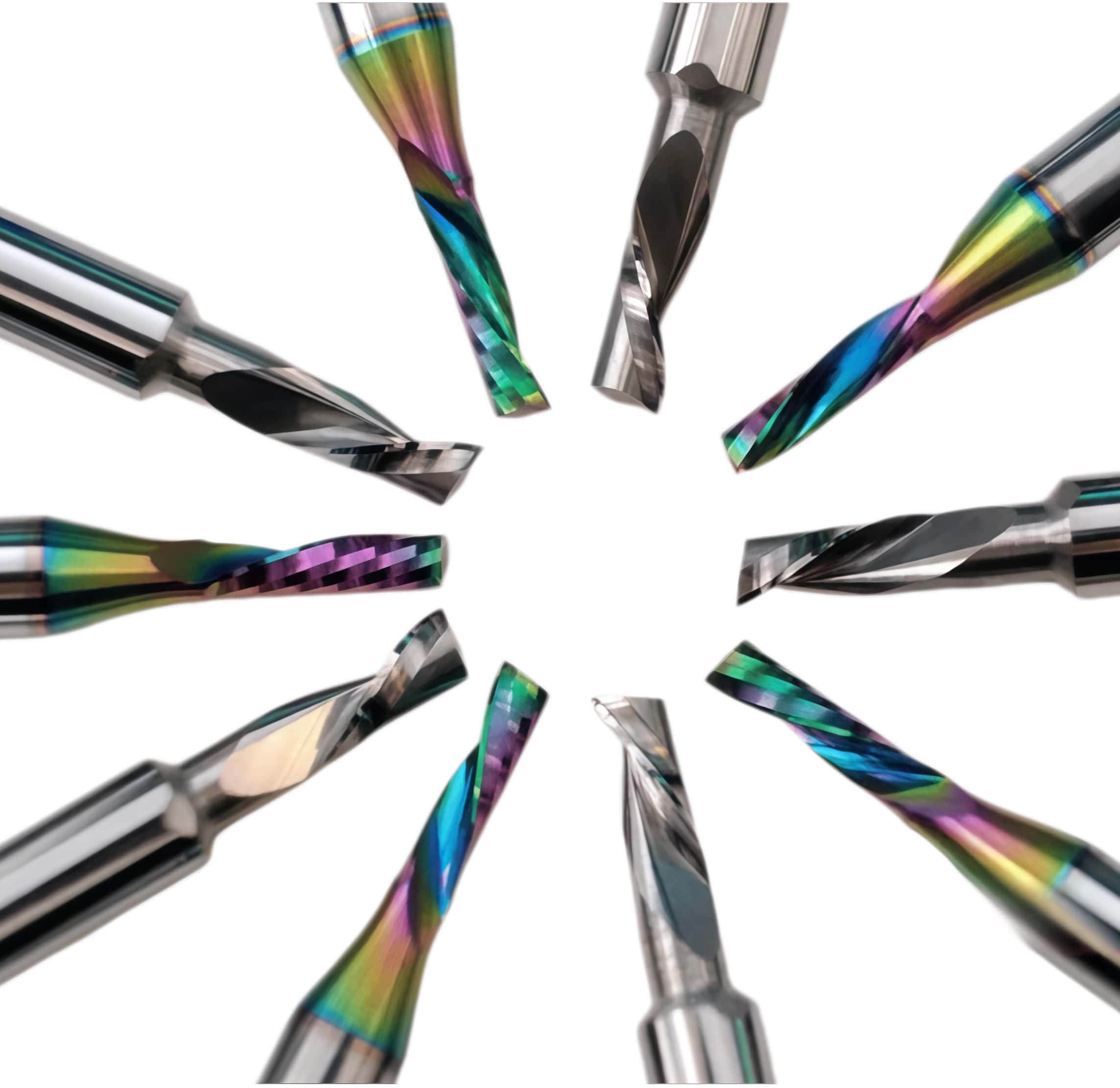

Coated Options: To further enhance performance and durability, select cutting bits—such as the highly-regarded ZUND R503—are available with advanced surface coatings. These coatings, including eye-catching rainbow finishes or robust diamond-like carbon (DLC) layers, are specially formulated to increase the tool’s efficiency and lifespan. Such enhancements are particularly advantageous when working with challenging materials like metals or surfaces subjected to abrasive processes, ensuring prolonged use while maintaining superior cutting quality over time.
