Colex T00558 T00500 T00502 T00530 Router Bits Specifications

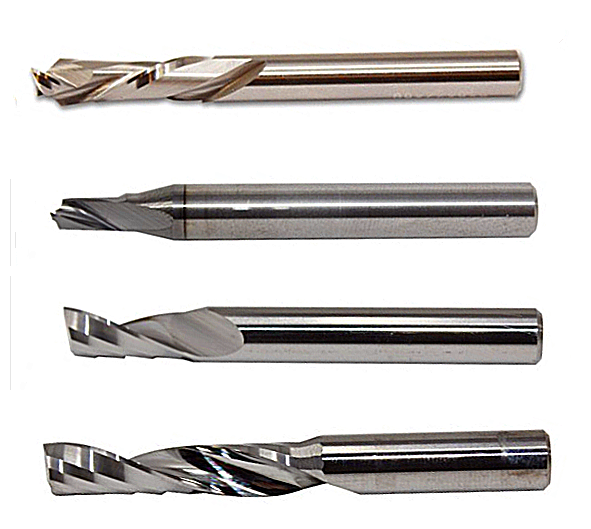

Colex T00558 T00500 T00502 T00530 Router Bits Specifications Dimensions Application

Below are the specifications, dimensions, and applications for Colex router bits T00558, T00500, T00502, and T00530 based on the information provided

Model	Type/Description	Shank Diameter	Cut Length / Tool Length	Max Routing Depth	Flutes	Application/Material Use
T00558	Compression Router Bit	6 mm	7/8" (22 mm)	22 mm	2	Compression bit to prevent splintering in wood, plywood, and composites
T00500	Universal Router Bit	6 mm	1" (25 mm)	25 mm	1	Universal bit for soft plastic, hard plastics, hard wood, and soft wood
T00502	Universal Router Bit	6 mm	7/16" (12 mm)	12 mm	1	Universal bit for soft plastic, hard plastic, ACM (DiBond), and polished acrylic
T00530	Router Bit for Aluminum & ACM	6 mm	1/4" (6 mm)	6 mm	1	Dry or wet cutting of aluminum and ACM (DiBond)

Additional information:
- Most Colex router bits come with a 6 mm shank diameter, making them compatible with their CNC flatbed cutters.
- The T00558 compression bit is crafted to minimize splintering in wood and composite materials.
- Models T00500 and T00502 are versatile options, designed to work effectively with plastics, wood, and composite materials such as ACM and acrylic.
- The T00530 is specifically engineered for aluminum and ACM cutting and is adaptable for both dry and wet machining.
- Flute count varies across the bits, with single-flute configurations commonly used for universal applications and two-flute designs favored for compression bits.
- Cut lengths and maximum routing depths differ by model, typically ranging from 6 mm to 25 mm or more, depending on the specific bit.

These router bits are widely employed in woodworking, plastics fabrication, composite material cutting, and aluminum machining. As a result, they are well-suited for applications such as furniture production, signature creation, and industrial CNC routing.
