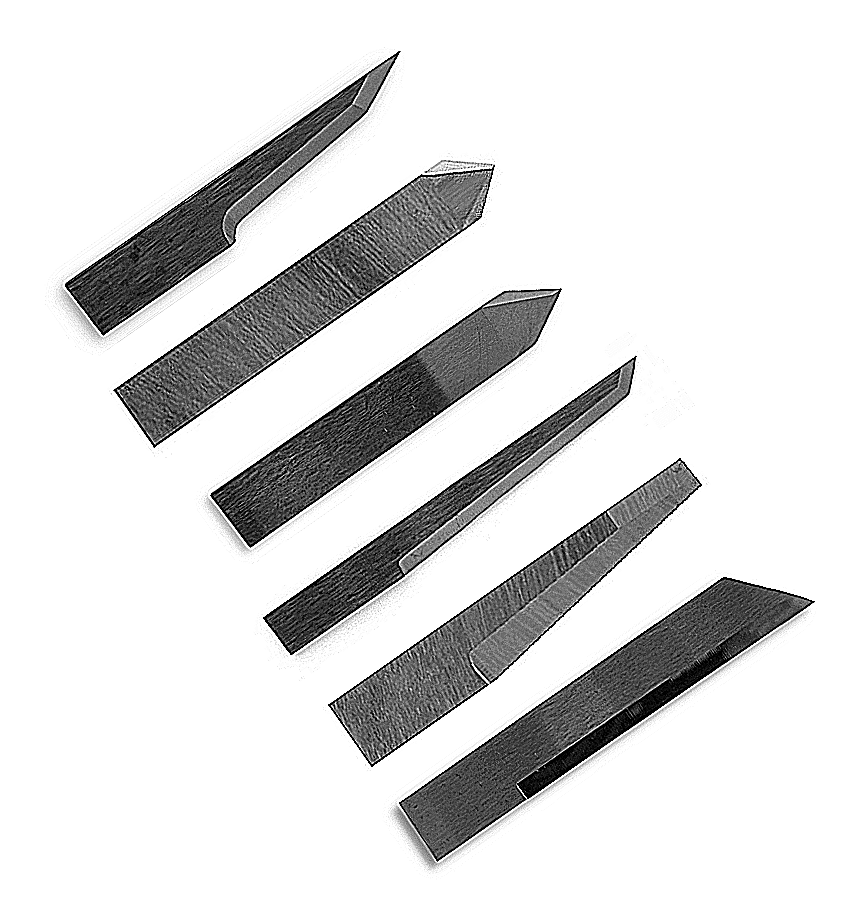

Blade For Zund s3 digital cutter | Cutting System?Z10 Z11 Z20 Z28 Z46 Z61 Z70 Z71

The Zund S3 digital cutter supports a variety of blades and cutting tools suitable for different materials and cutting depths. Here is an overview of the relevant blades and cutting systems compatible with the Zund S3, including the specific blade models you mentioned (Z10, Z11, Z20, Z28, Z46, Z61, Z70, Z71):

Zund S3 Digital Cutter Overview

· The S3 is a compact digital cutter designed for materials up to 25 mm thick, including paper, cardboard, plastics, rubber, leather, and more.

· It supports multiple tool modules such as universal, routing, punching, notching, and marking modules.

· The cutter can handle two tools in a single job and features a tandem mode for increased productivity.

Blade Types for Zund S3

Zund blades for the S3 cutter fall mainly into three categories: drag blades, oscillating blades, and rotary blades.

Drag Blades

· Used in non-powered tools (UCT, KCT, VCT, SCT, C2).

· Suitable for cutting foil, paper, thin cartons, banners, and similar materials.

· Flat-stock drag blades include Z10, Z11, Z44, Z46, etc.

· Round-stock drag blades include Z1, Z2, Z3, Z4, Z5, Z7.

· V-cut blades include Z70, Z71, Z701, Z73.

Specific drag blades for S3:

Blade Model	Cutting Angle	Max Cutting Depth	Material Suitability	Notes
Z10	50°	4.8 mm	Soft materials such as self-adhesive vinyl, polycarbonate, polyester, masking film	Double-edged carbide drag blade, flat-stock
Z11	60°	6.9 mm	Hard materials like tarpaulin, PVC banner, polypropylene, coated textiles, vinyl, hard foam core, folding carton	Flat-stock carbide drag blade, double-edged
Z46	45°	20 mm	Thicker materials requiring deep cuts; tungsten carbide construction for durability and precision	Flat drag blade with 50 mm height and 7.8 mm width; high durability and cutting performance

Oscillating Blades

· Used for cutting corrugated cardboard, folding cartons, foam core, rubber, felt, and similar materials.

· Pointed blades with cutting angles around 84°.

· Examples include Z20, Z23, Z26.

Specific oscillating blades for S3:

Blade Model	Cutting Angle	Max Cutting Depth	Material Suitability	Notes
Z20	84°	14.3 mm	Corrugated cardboard, folding carton, foam core, rubber, felt	Pointed oscillating blade for small details
Z23	45°/84.5°	22 mm	Corrugated cardboard, foam core board, felt, rubber foams, hard foams, fabric, plastic	Tungsten carbide oscillating blade, high precision

Other Blades

· Rotary blades (e.g., Z50, Z51, Z52, Z53) are also compatible with Zund flatbed cutters but are more common in other models or applications.

· V-cut blades (Z70, Z71) are specialized drag blades for V-grooving and precise crease cutting.

Summary Table of Mentioned Blades for Zund S3

Blade Model	Type	Cutting Angle	Max Depth	Material Suitability	Notes
Z10	Drag (Flat-stock)	50°	4.8 mm	Soft films, vinyls, masking films	Double-edged carbide drag blade
Z11	Drag (Flat-stock)	60°	6.9 mm	Tarpaulin, PVC banner, coated textiles, hard foam	Double-edged carbide drag blade
Z20	Oscillating	84°	14.3 mm	Corrugated cardboard, folding carton, foam	Pointed oscillating blade for details
Z28	(No direct info in results; likely similar to other drag or oscillating blades)
Z46	Drag (Flat-stock)	45°	20 mm	Thick materials, heavy-duty cutting	Tungsten carbide blade, high durability
Z61	(No direct info in results; possibly a specialized blade)
Z70	Drag (V-cut)	(Not specified)	(Not specified)	V-grooving and creasing	V-cut blade family
Z71	Drag (V-cut)	(Not specified)	(Not specified)	V-grooving and creasing	V-cut blade family

Conclusion

The Zund S3 digital cutter uses various blades tailored to specific materials and cutting requirements:

· Z10 and Z11 are flat-stock carbide drag blades for softer and harder materials respectively.

· Z20 is an oscillating blade ideal for corrugated cardboard and foam.

· Z46 is a heavy-duty drag blade with a large cutting depth for thick materials.

· Z70 and Z71 are V-cut blades for precise creasing and V-grooving.

If you need blades like Z28 or Z61, these are less commonly referenced and may be specialized or less standard; consulting Zünd directly or a specialized supplier is recommended for those.

These blades fit into the S3 cutter’s modular tool heads such as UCT, SCT, EOT, and POT, ensuring compatibility with the machine’s cutting system.
