1. What are common compatible knife blade models for these CNC machines?

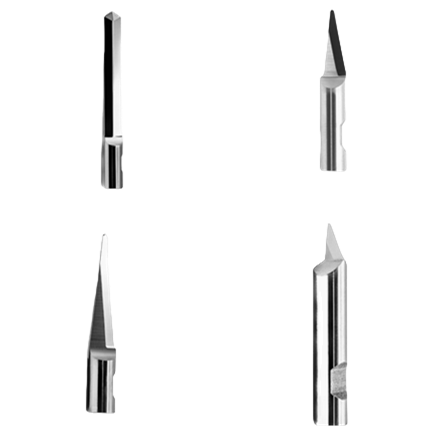

The BT-57268 oscillating knife blade is compatible with Aristo 7354, AXYZ BT-57268, Kuris 78558, Multicam 003612-MC7354, and Valiani 001897 models. It has a 25mm cutting depth, 6mm shank diameter, and round point type.
Ecocam knife blades include models like E12, E18, and E25 with various cut lengths and shank sizes, designed for use in compatible EOT and TCM knife tool machines.
2. What materials can these knife blades cut?
These blades are suitable for cutting foam board, foam materials, corrugated board, packaging materials, cardboard, folding carton, gasket mats, magnetic materials, cork, rubber, and foam.
3. What types of knife blades are available?
Oscillating knife blades with round or tangential points, single or double edge, and varying cut lengths (e.g., 12mm, 18mm, 25mm) are common. Some blades are solid carbide for durability.
4. What are the specifications of the MultiCam 1000 Series CNC Router?
It features a solid steel base frame, 25mm linear bearing rails, air-cooled 5.5 HP spindle at 24,000 RPM, and a knife tangential cutting system designed for mechanized knife cutting, creasing, and perforation.
5. How to set knife parameters on MultiCam machines?
Use the Knife Utility menu on the MultiCam control panel to set knife parameters such as Z control and maximum cutting depth. Adjustments are made in thousandths of an inch and confirmed via the keypad.
6. Are there replacement sources for these blades?
Blades like the BT-57268 and Ecocam models are available from suppliers such as Shenzhen Oyea Machinery Co., Ltd.
7. What tooling shank sizes are supported?
Common shank diameters include 6mm for knife blades and a range of collet sizes for router bits from 0.1250” to 0.6250” for CNC routers.
8. What safety precautions are recommended?
Operators must follow all safety procedures outlined in the machine manuals to avoid injury or damage, including proper use of guards, emergency stops, and correct tool mounting.
This summary covers common questions about knife blades and router bits compatible with Multicam, Ecocam, Aristo, Axyz, Kuris, and Valiani CNC router machines, focusing on blade types, compatibility, materials, machine features, and operational settings. For detailed technical specifications and purchasing, consult the respective supplier catalogs and machine manuals.
