Summa 500-9825 9826 F Series POT Pneumatic Oscillating V‑Cut / Bevel‑Cut Tool Knives Knife Blades

Summa 500-9825 9826 F Series POT Pneumatic Oscillating Tool Knives Knife Blades For Sale

Summa 500-9825,Summa 500-9826,Summa F Series Blades,Summa POT Blades,Summa V‑Cut Blade,Summa Bevel‑Cut Blades,Summa Tool,Summa Knives,Summa Blades,Summa Pneumatic Blades

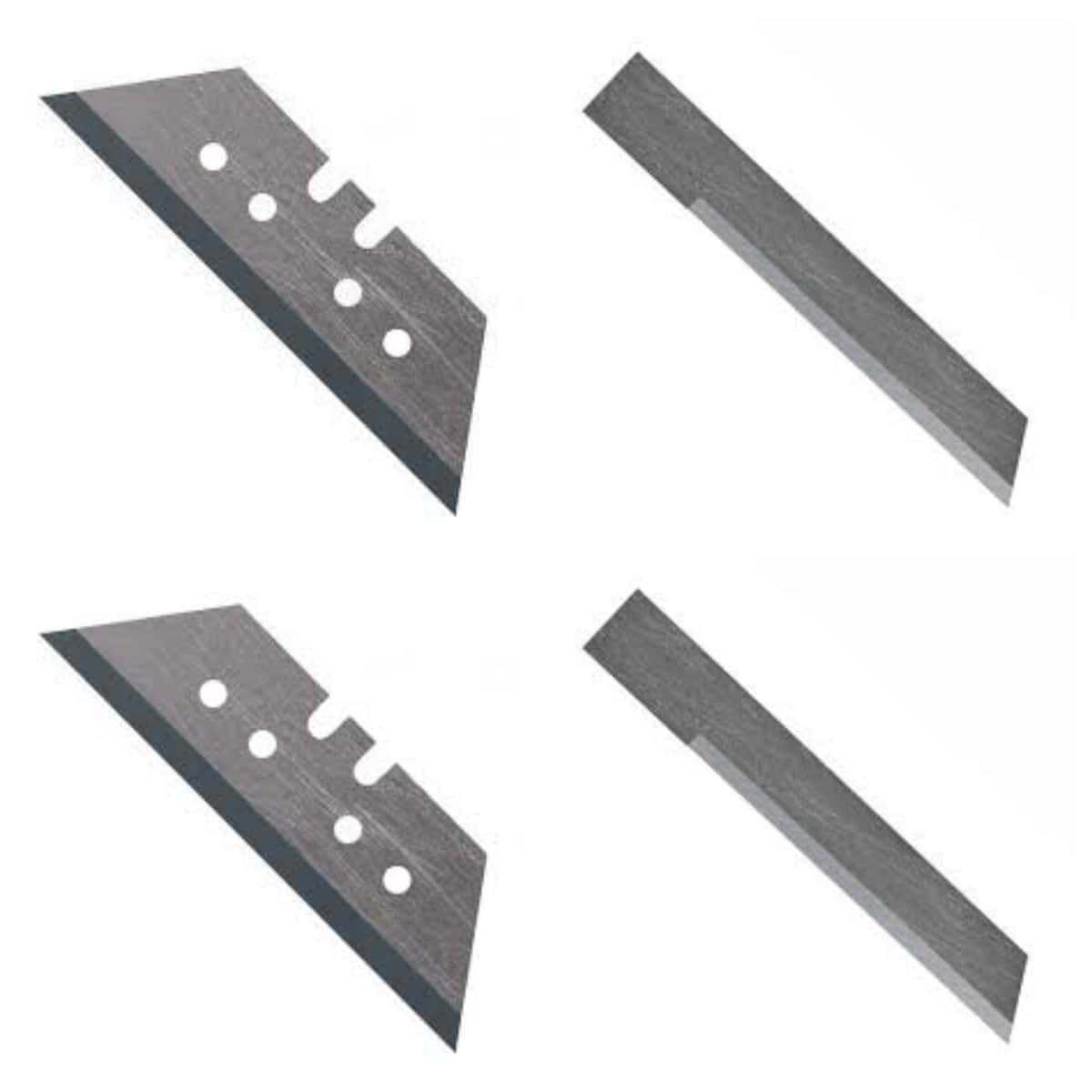

Summa part numbers 500‑9825 and 500‑9826 refer to V‑cut knife blades specifically engineered for use with the Summa F‑Series V‑Cut / Bevel‑Cut Oscillating Tool. These blades are not intended for use with the standard POT pneumatic oscillating tool designed for flat knife cutting.

Primary Function and Applications
The 500‑9825 and 500‑9826 blades are flat V‑cut blades tailored for the V‑Cut / Bevel‑Cut module of Summa F‑Series flatbed cutters. Their primary function is to score or partially cut through thick boards at precise angles, enabling the creation of clean fold lines or beveled edges. These blades are particularly suited for working with rigid and semi-rigid materials, making them ideal for use in sign-making, packaging, and fabrication tasks. Common applications include cutting display boards, foam-core panels, honeycomb boards, and similar rigid sheet substrates.

Key specifications (500‑9825 vs 500‑9826)

Parameter	500-9825 (standard V-cut)	500-9826 (hard-metal V-cut)
Blade type	Flat V-cut blade	Flat V-cut blade
Blade material	Standard steel (non-hard-metal)	Hard metal (more wear-resistant)
Blade length	Typically ~58 mm (typical V-cut size)	~58 mm (common V-cut length)
Blade width	~8 mm (typical V-cut width)	~8 mm (typical V-cut width)
Blade thickness	~0.9–1.0 mm (thinedge V-cut)	~1.0 mm (slightly thicker, wear-optimized)
Cutting angle	30° (standard Vcut angle)	30° (same Vcut geometry)
Max cutting depth*	~18–27 mm (≈0.71–1.06 in)	Up to ~43 mm (≈1.7 in) in some listings, but FSeries VCut module typically rated up to ~1.06 in depending on mater

*Exact “depth range” (18–27 mm) for 500‑9825 versus somewhat higher max depth for 500‑9826 reflects application‑oriented guidance rather than only physical blade length; the hard‑metal version is optimized for deeper, more aggressive scoring in thicker or abrasive boards.

Typical materials and applications
Both 500‑9825 and 500‑9826 are used for V‑grooving and bevel‑cutting of:
Display boards, foam‑core boards, and foamboard panels
PET sound‑absorbing felts and acoustic panels
Honeycomb boards, sandwich panels, and rigid foams
Corrugated board, folding cartons, and varnish blankets
The 500‑9826 (hard‑metal) blade is preferred for:
Thicker boards or more abrasive materials where longer edge life is needed.
Production‑level scoring where downtime for blade changes must be minimized.

Mounting and compatibility notes
Both blades fit the Summa F‑Series V‑Cut / 30° V‑Cut tool, not the standard POT‑L pneumatic oscillating knife (which uses numbers like 500‑9830, 500‑9831, etc.).

The design of these V-cut blades, including their length and profile, is tailored specifically to align with the stroke and head geometry of the F‑Series V‑Cut module. For optimal performance and compatibility, it is recommended to use Shenzhen Oyea Summa 500‑9825/500‑9826 blades or certified OEM alternatives instead of generic substitutes.
