Esko Kongsberg 3mm Super Sharp Up Cut Milling & Router Bits

Esko Kongsberg 3mm Super Sharp Up-Cut Milling & Router Bits are premium, industrial-grade solid carbide tools engineered specifically for high-precision finishing on Kongsberg Precision Cutting Systems digital flatbed cutting tables Enquire now

Description

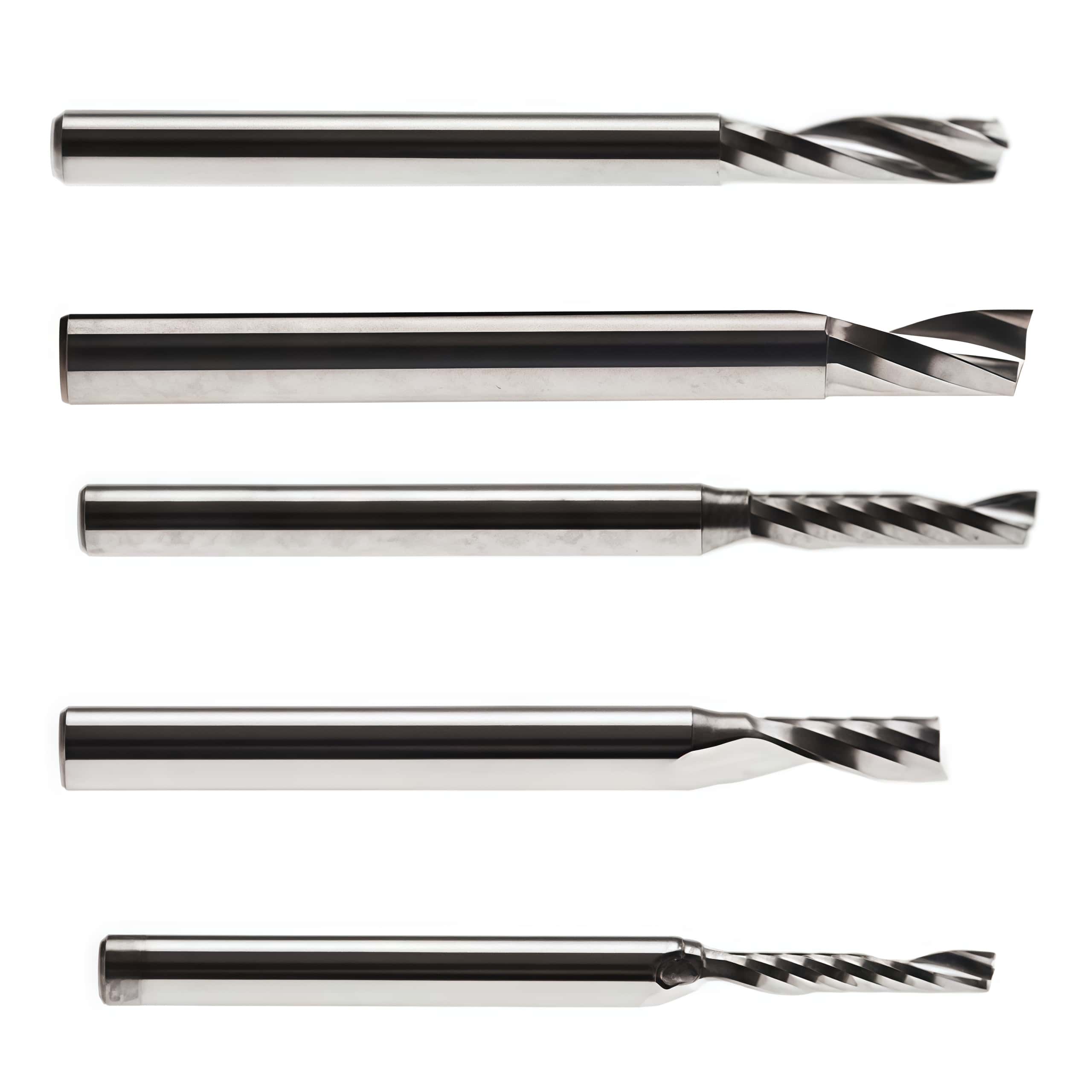

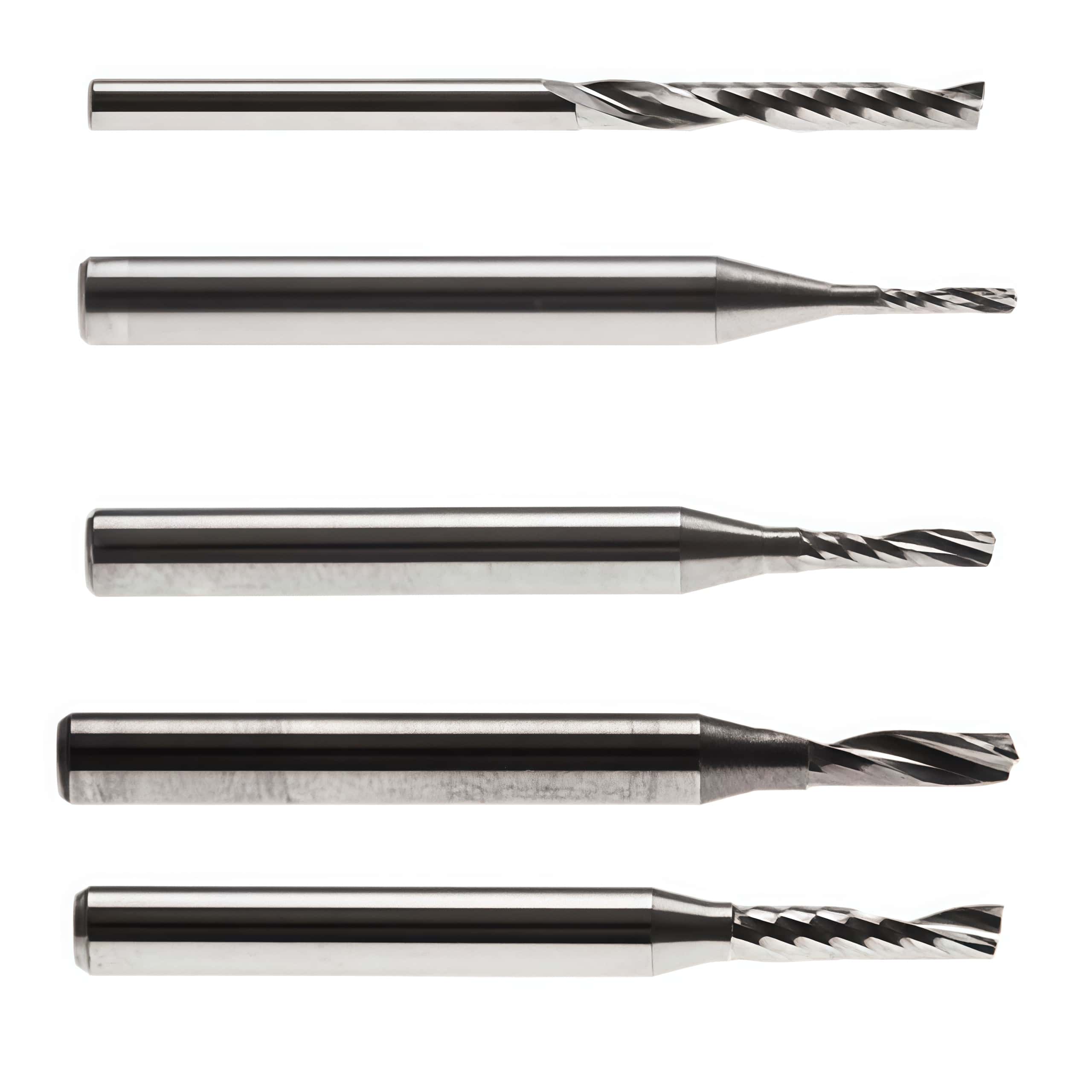

Esko Kongsberg 3mm Super Sharp Up Cut Milling & Router Bits

These 3mm Super Sharp Up-Cut Milling & Router Bits are specialized Kongsberg Precision Cutting Systems tools engineered for CNC machining, flatbed routing, and digital finishing tables. Designed with high-coaxiality tungsten steel, they feature highly polished, ultra-sharp single flutes optimized for cutting acrylic, rigid plastics, wood, and composite boards with clean edges and fast chip removal.

The technical nomenclature of these bits specifies their cutting diameter (03 for 3.0mm), followed by the maximum cutting depth/flute length, and total shank length (e.g., 1506-30 indicates a 1.5mm diameter or variation code with a 6mm flute length and 30mm overall length). They are fully compatible with Kongsberg Systems automated barcode tool recognition.

	BIT-AUS03-1506-30 G42443622
	BIT-AUS03-1004-30 G42443614
	BIT-AUS03-3011-38 G42443697
	BIT-AUS03-3022-50 G42443705
	BIT-AUS03-2011-38 G42443655
	BIT-AUS03-2006-30 G42443630
	BIT-AUS03-2506-30 G42443663
	BIT-AUS03-3006-30 G42443689
	BIT-AUS03-2511-38 G42443671
	BIT-AUS03-2008-30 G42443648

Collet Compatibility and Tool Holder Requirements
When working with 3 mm diameter shank bits on Esko Kongsberg equipment, specifically the MultiCUT, MultiCUT-HP, or High-Frequency spindle tool heads, it is essential to ensure the proper tooling setup. To achieve optimal performance and prevent equipment damage, these bits must be used with a dedicated 3 mm collet or an appropriate chuck adapter. Examples of suitable adapters include part number 42444083 or region-specific equivalents.

It is crucial to avoid inserting 3 mm shanks directly into standard 6 mm or 1/4-inch chuck blocks without using a reducer shim. Neglecting this requirement can result in significant issues such as excessive tool runout, immediate tool breakage, or irreversible structural damage to the spindle motor. Adhering to these specifications is vital to maintain performance, ensure safety, and prolong the lifespan of the equipment.
