Zund r202 r203 r204 r205 Router Bits Specifications Size Use

Zund r202 r203 r204 r205 Router Bits Specifications Size Use

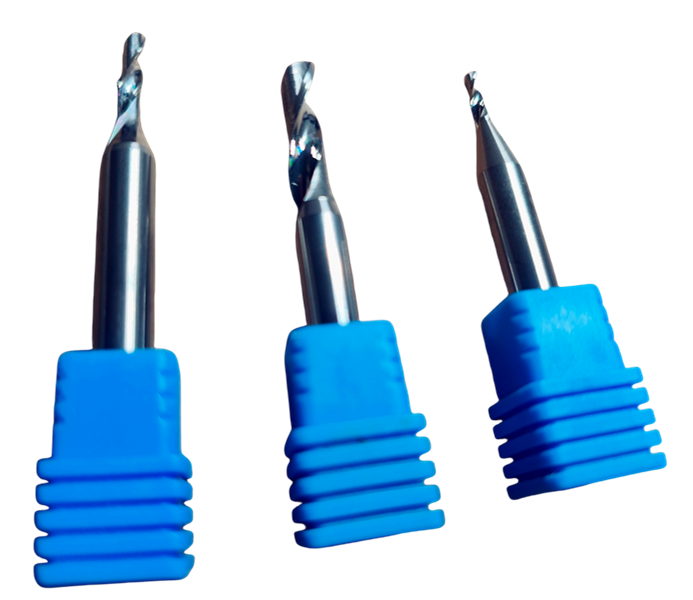

Here are the specifications and typical applications for the Zünd R202, R203, R204, and R205 router bits. These bits are designed for precision routing, engraving, and milling across a wide range of materials, including plastics, composites, wood, and aluminum.

Zünd Router Bit Specifications & Uses

Model	Routing Diameter	Max Cutting Depth	Shank Diameter	Flute Type	Max RPM	Typical Materials	Use Cases
R202	2.0 mm	6.0 mm	6.0 mm	Single O-Flute, Up-Cut	50,000	Acrylic, Polycarbonate, Expanded PVC, Polypropylene, MDF	Fine-detail routing, engraving, drilling
R203	3.0 mm	11.0 mm	6.0 mm	Single O-Flute, Up-Cut	50,000–60,000	Acrylic, Dibond, Aluminum (with MQL), Plastics, MDF	Multipurpose routing, engraving, drilling
R204	4.0 mm	14.0 mm	6.0 mm	Single O-Flute, Up-Cut	50,000	Acrylic, Aluminum, Dibond, Forex, MDF, Plastics	Deeper cuts in rigid materials
R205	5.0 mm	16.0 mm	6.0 mm	Single O-Flute, Up-Cut	50,000	Acrylic, Aluminum, ACM, Corrugated Plastic, Polycarbonate, Wood	Heavy-duty routing, milling

Key Features

Material: All bits are made from fine-grain tungsten carbide, ensuring durability and precision.
Flute Design: Single O-flute with up-cut geometry facilitates efficient chip removal and high-quality cuts.
Compatibility: Designed for use with Zünd cutters (e.g., G3, S3) and compatible with other flatbed CNC systems like Kongsberg, Colex, Summa, and Multicam.
Applications: Suitable for a variety of tasks including routing, engraving, drilling, milling, grooving, and shaping in industries such as display and sign-making, prototyping, panel processing, advertising, and product manufacturing.
