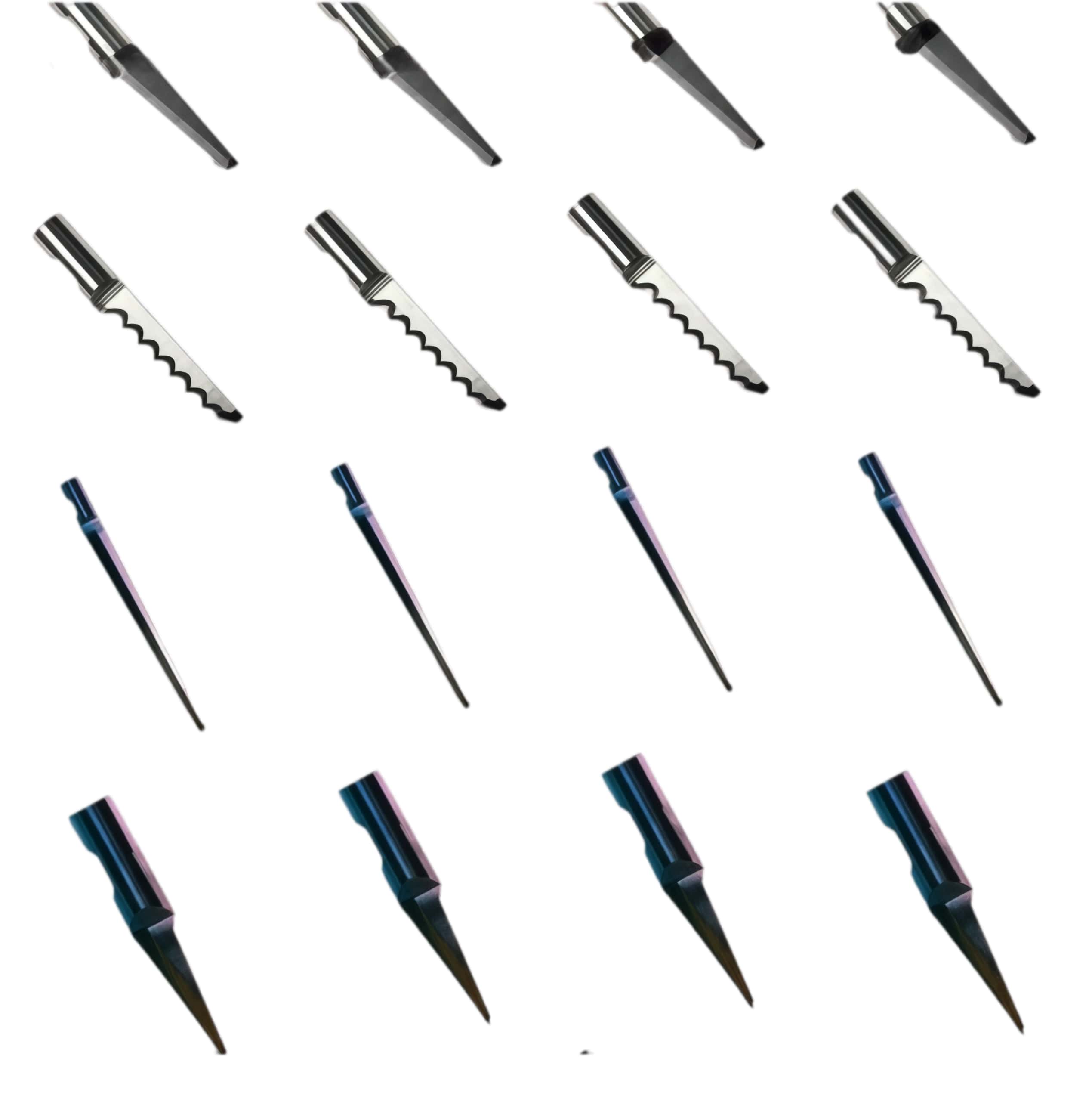

SUMMA 500-9830 9831 9832 9833 9834 F Series POT Pneumatic Oscillating Tool Knives Knife Blades

SUMMA 500-9830 9831 9832 9833 9834 F Series POT Pneumatic Oscillating Tool Knives Knife Blades

The codes 500-9830, 500-9831, 500-9832, 500-9833, and 500-9834 refer to specific Summa F-Series Pneumatic Oscillating Tool (POT) knife-blade part numbers designed for use with Summa flatbed cutters equipped with the SUM-500-9350 POT module.

Purpose of these blades
These oscillating-knife blades are interchangeable components mounted in the Summa POT head. The head utilizes compressed air to produce an up-and-down motion, enabling it to cut through thicker, rigid materials such as honeycomb board, foamcore, corrugated plastic, rubber, and certain types of soft foams.

Each part number corresponds to a distinct blade geometry, characterized by variations in length, thickness, and edge profile. This allows users to select the most appropriate blade based on the material's thickness and the desired level of cut quality.

Part no.	Blade type / size	Typical use and thickness
500-9830	Flat point, L20 T0.63	Generalpurpose; materials up to 18 mm, e.g., honeycomb board, extruded polystyrene, insulation, rubber. Typical speed ~200 mm/s.
500-9831	Flat point, L27 T0.63	Thickermaterial version; handles 18–25 mm, mainly honeycomb board at ~100 mm/s.
500-9832	Flat point, L20 T1.5	Sturdier 1.5 mmthick blade for up to 18 mm; suited for corrugated plastic, polycarbonate, twinwall plastic at ~150 mm/s.
500-9833	Serrated L27 T1.0	Serratededge blade for soft foams up to 25 mm; must be run at low speed (<50 mm/s).
500-9834	Point L20 T1.0	Pointedtip blade that penetrates deeper into the cutting mat; suited for rubber and small curves, and can cut ACP (aluminum composite panels) but with ribbed edges. Extra protection mat recommended.
