IECHO TK4S Digital Cutting System Blades and Knives

IECHO TK4S Digital Cutting System Blades and Knives

The IECHO TK4S digital cutting system uses a modular tool system that supports a wide range of specialized knives and blades designed for different industrial materials, including textiles, foam, and rigid boards.

Primary Cutting Tools & Blades
The TK4S can be equipped with up to three cutting assemblies simultaneously, allowing for multi-tool jobs.

Electric Oscillating Tool (EOT): Used for soft and medium-density materials like corrugated board and foam. It typically features a 1mm stroke.
Pneumatic Oscillating Tool (POT): An air-driven tool for hard, dense materials. It has an adjustable stroke up to 8mm and can cut materials up to 50mm thick.
Universal Cutting Tool (UCT): Designed for through-cutting materials up to 5mm thick at high speeds.
Kiss Cut Tool (KCT): Specialized for thin materials like self-adhesive vinyl, foil, films, and thin paper.
Driven Rotary Tool (DRT/PRT): Specifically for cutting textiles and fabrics.
V-Cut Tool: Creates complex structural designs in foam core or sandwich boards. It can be set to five angles: 0°, 15°, 22.5°, 30°, and 45°.
Router Spindle (RZ): A high-speed spindle (up to 60,000 RPM) for rigid materials like acrylic, aluminum, and MD

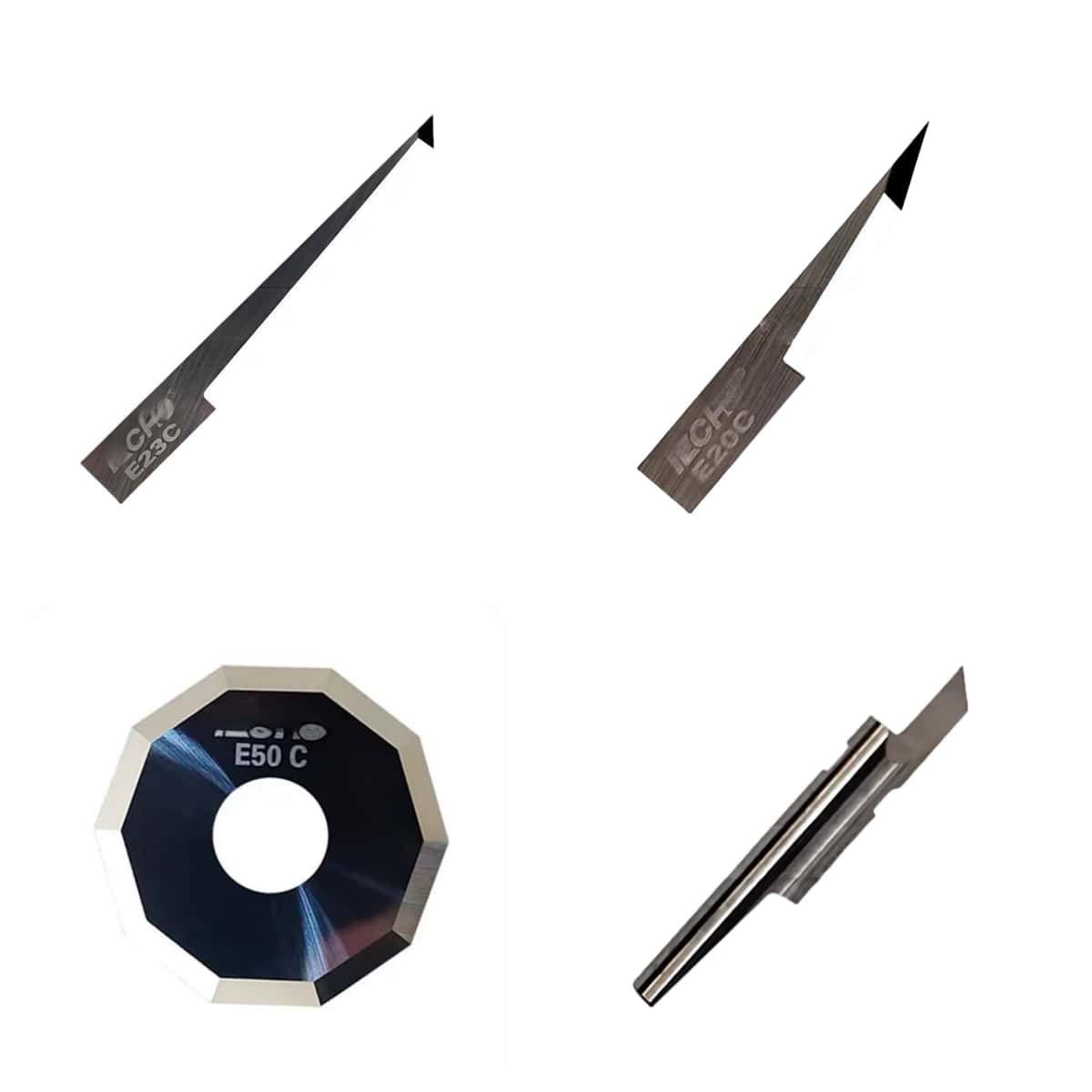

Common Blade Models

Replacements for these tools are often categorized by series and material compatibility. Retailers like Oyea Blades provide specific blade codes:

Blade Series	Tool Compatibility	Typical Application
E1, E2	Kiss-Cut (KCT)	Vinyl, decals, thin films
E16, E17	UCT / EOT	Cardboard, gaskets, medium materials
E20 - E23	Oscillating (EOT)	Corrugated board, foam board
E28, E29	EOT / POT	Thicker foam, rubber
E50 - E52	Rotary (DRT)	Textiles, non-woven fabrics
E64 series	Pneumatic (POT)	Extra thick materials (up to 50mm)

System Features for Enhanced Knife Precision
Automatic Knife Initialization (AKI): Equipped with an advanced infrared sensor, this feature ensures accurate measurement of tool length and automatically regulates cutting depth for optimal performance.
Modular Heads: The TK4S offers versatile compatibility, allowing for customizable configurations with standard, punching, and milling heads to address a wide range of industrial applications.
