Colex Router Bit Models And Application Specifications Dimensions
Router Bits for Colex CNC Flatbeds and XY Cutters
Colex makes CNC flatbed cutters like:
Sharpcut Digital Flatbed Cutter
Sharpcut Pro Conveyor Cutter
Sharpcut SX Series
Sharpcut SXC Series

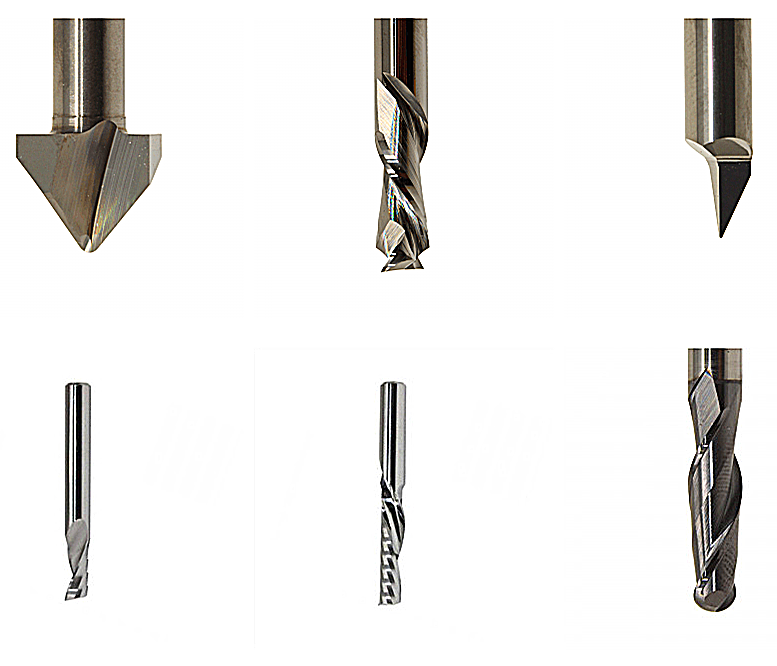

Main Colex Router Bit Models and Applications
|
Model |
Type |
Description |
Applications |
Key Specifications (Typical) |
|
Straight Router Bit |
Precise straight cuts in wood, plastic, aluminum |
Woodworking, furniture making, edge trimming |
Shank Ø 6 mm, cutting diameter varies |
|
|
Round Nose Router Bit |
Creates smooth rounded edges on wood and MDF |
Decorative woodworking, furniture edging |
Shank Ø 6 mm |
|
|
Chamfer Router Bit |
Cuts 45° bevels for decorative finishes and framing |
Decorative woodworking, framing |
Shank Ø 6 mm |
|
|
Tapered Router Bit |
Precise tapered joints for fine joinery |
Woodworking joints, furniture making |
Shank Ø 6 mm |
|
|
V-Groove Router Bit |
Creates V-shaped decorative grooves |
Decorative woodwork, fine engraving |
Shank Ø 6 mm |
|
|
Edge Trimming Router Bit |
Trims laminated wood or MDF edges smoothly |
Laminate edge trimming, woodworking |
Shank Ø 6 mm |
|
|
Template Router Bit |
Guide bushing for repetitive, precise template routing |
Template cutting, shape duplication |
Shank Ø 6 mm |
|
|
Round Bottom Router Bit |
Creates rounded bottom grooves or cuts |
Woodworking, decorative grooving |
Shank Ø 6 mm |
|
|
Spiral Router Bit |
Smooth, clean cuts with spiral edge for wood, plastic, aluminum |
Precision cutting, engraving |
Shank Ø 6 mm |
|
|
T-Slot Router Bit |
Cuts T-shaped slots for joints and slotting |
Woodworking joints, furniture making |
Shank Ø 6 mm |
|
|
Carbide Router Bit |
Heavy-duty cutting for MDF and plywood |
Heavy-duty cutting, fine woodworking |
Shank Ø 6 mm, Tool Length 50 mm, Cut Ø 6 mm, Max depth 12 mm, 1 flute (down cut) |
|
|
Up-Cut Spiral Router Bit |
Smooth, clean cuts for softwoods, hardwoods, plastics |
Cutting, shaping, engraving |
Shank Ø 6 mm |
|
|
Inlay Router Bit |
Precise inlays in wood for decorative woodworking |
Wood inlays, custom designs |
Shank Ø 6 mm |
|
|
Mortise Router Bit |
Precise mortises for joinery |
Mortise cutting, furniture joinery |
Shank Ø 6 mm |
|
|
Flush Trim Router Bit |
Trims flush against templates or edges |
Template trimming, edge finishing |
Shank Ø 6 mm |
|
|
Profile Router Bit |
Decorative edge profiles on wood, plastic, composites |
Profile shaping, decorative woodworking |
Shank Ø 6 mm |
|
|
Round Over Router Bit |
Rounds edges for smooth finishes |
Edge rounding, furniture making |
Shank Ø 6 mm |
Specifications and Dimensions (Examples)
· Shank Diameter: Commonly 6 mm for most router bits.
· Cutting Diameter: Varies by model, typically from 3 mm to 6 mm or more.
· Tool Length: Around 50 mm for many bits.
· Max Routing Depth: Ranges from 8 mm to 32 mm depending on the bit.
· Flutes: Usually 1 flute for up-cut/down-cut spiral bits; other bits vary.
For example, the Colex T00501 Down Cut Router Bit has a shank diameter of 6 mm, routing diameter of 6 mm, tool length of 50 mm, max routing depth of 12 mm, and 1 flute.
Applications
Colex router bits are optimized for:
· Woodworking: furniture making, decorative edges, joinery, inlays.
· Plastics and composites: precise cutting and shaping.
· Aluminum and ACM (Aluminum Composite Material): specialized bits liken T00525 and T00527 series are optimized for these materials.
· Template routing and repetitive shape duplication.
· Engraving and fine detailing.
Summary
OYEA offers a comprehensive range of router bits tailored for CNC cutters, featuring models for straight cuts, bevels, grooves, inlays, mortises, and decorative profiles. Made from premium tungsten carbide, these bits provide durability and precision across a variety of materials including wood, plastics, aluminum, and composites, making them suitable for professional and DIY use in furniture making, decorative woodworking, joinery, and engraving.
