Multicam Ball Nose Tools for Carving & 3D Modeling Producer Manufacturer Supplier OEM

MultiCam ball nose tools are used for 2D/3D carving, foam milling, and model-making, where the rounded tip helps create smooth contours and finer relief detail. Enquire now

Description

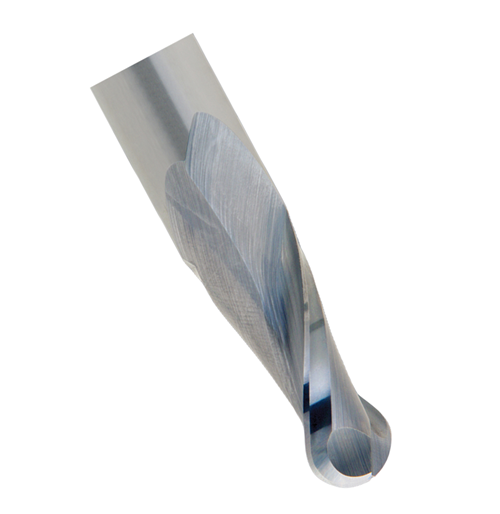

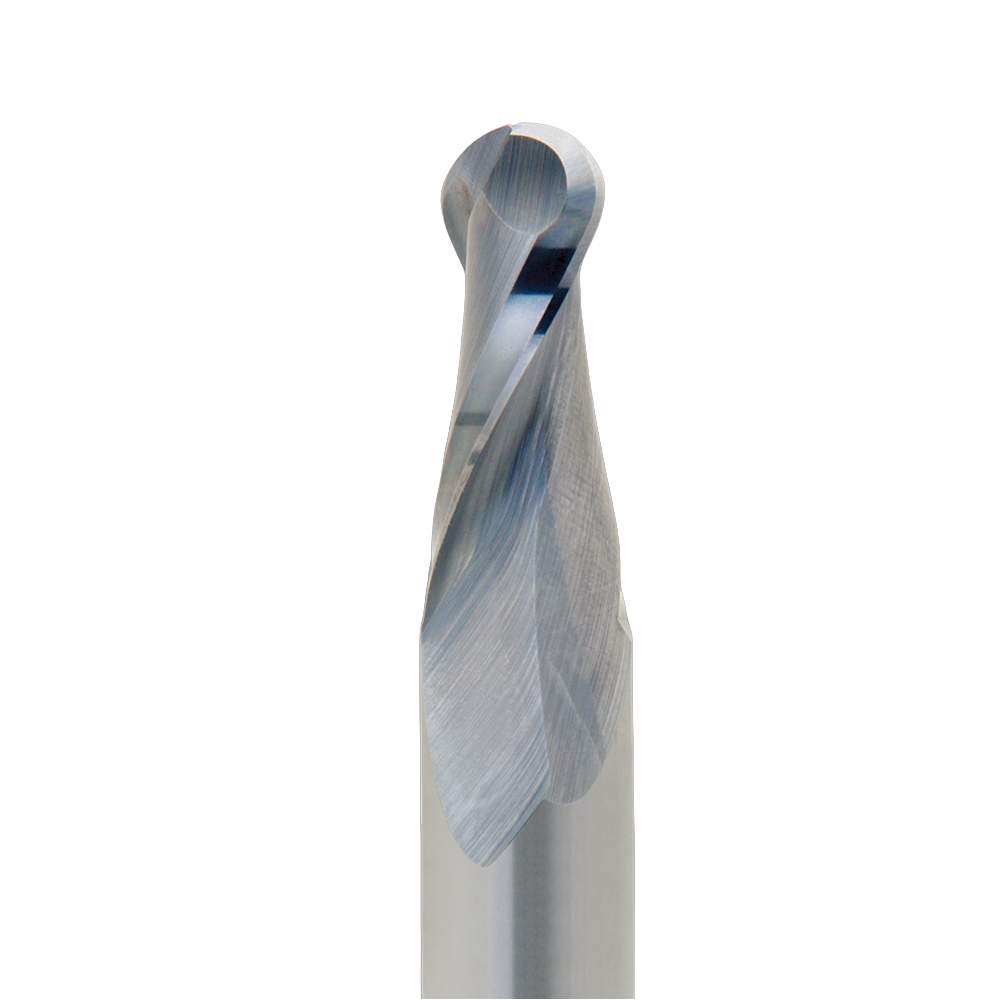

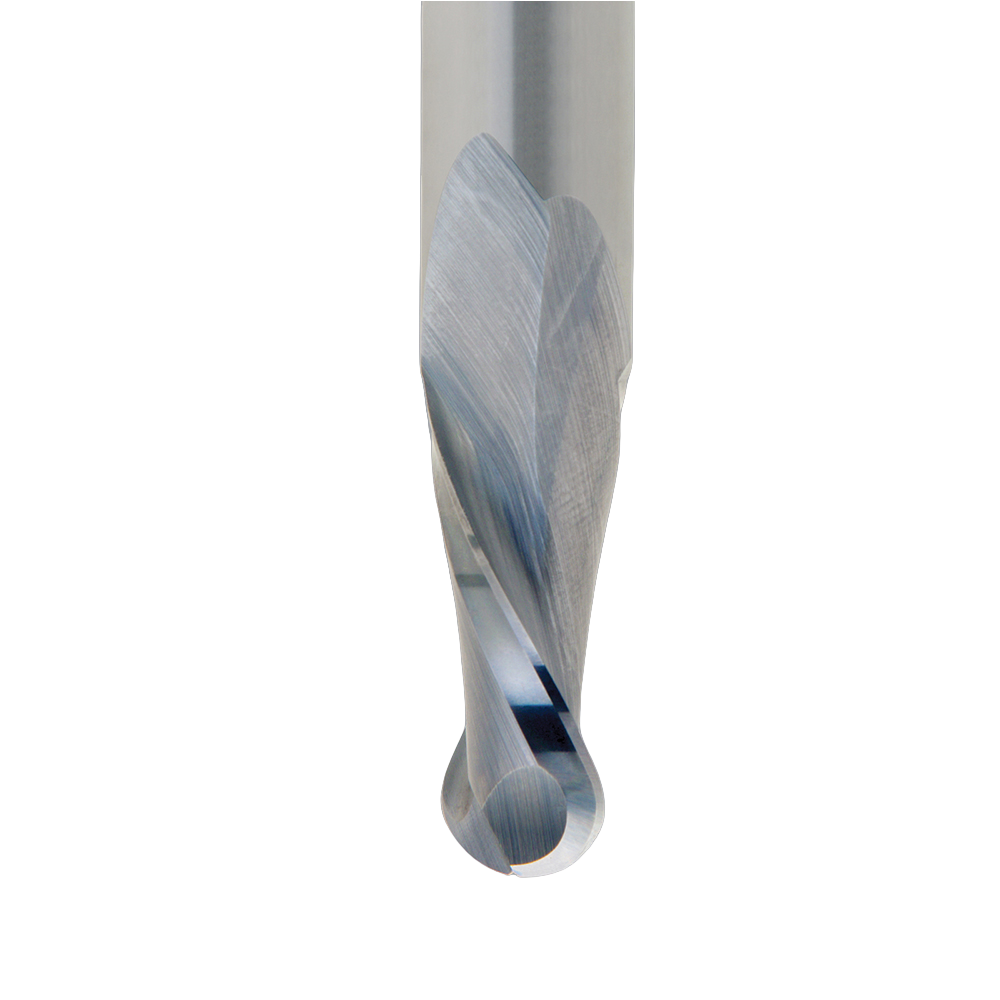

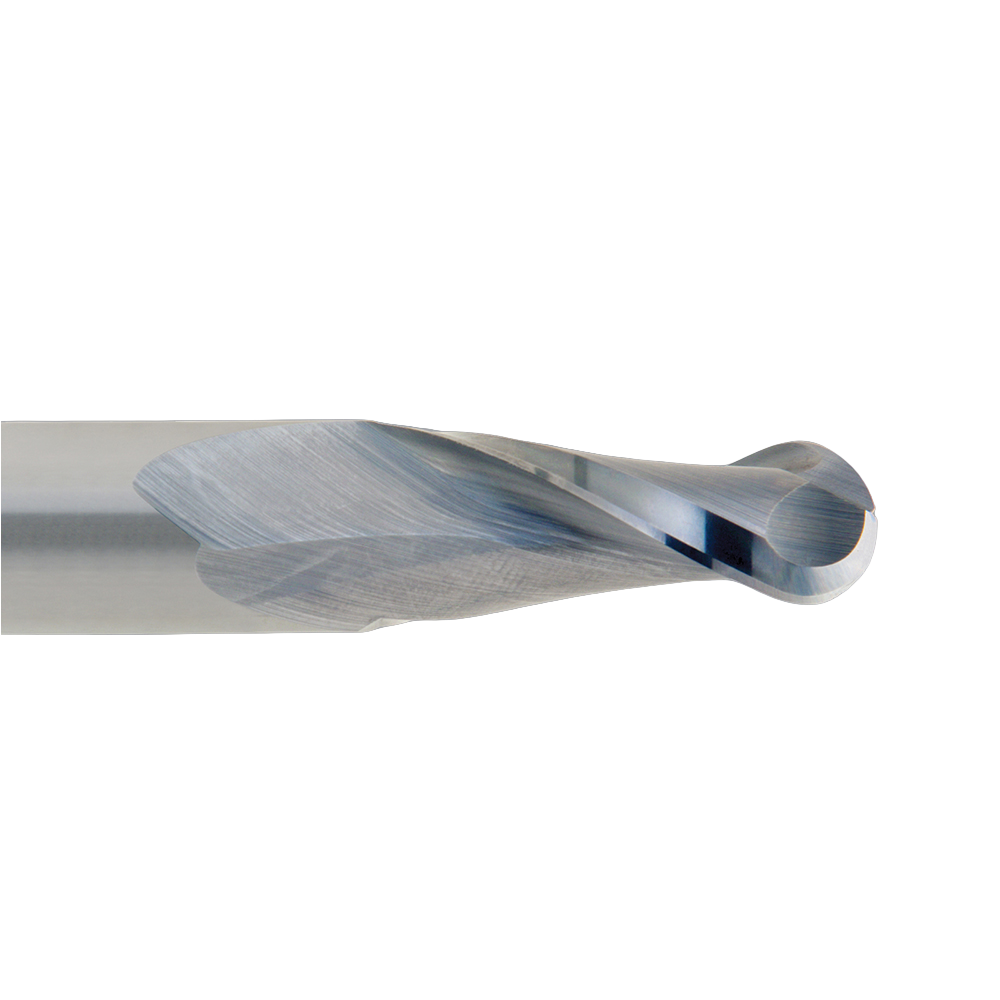

Multicam Ball Nose Tools for Carving & 3D Modeling

CODE	CUT DIAMETER	CUT LENGTH	SHANK
95-00047-52-235B	1/16 Ballnose For Wood, Plastics and Aluminum	1/4	1/8
95-00047-52-244B	1/8 - For Wood, Plastics and Aluminum	1/4	1/8
95-00047-52-260B	3/16 Ballnose for Wood Plastics Aluminum	3/4	1/4
95-00047-52-240B	1/8 Ballnose for Wood Plastics Aluminum	1/2	1/4
95-00047-52-280B	1/4 Ballnose for Wood Plastics Aluminum	7/8	1/4
95-00047-52-320B	3/8 Ballnose For Wood Plastics Aluminum	1-1/8	3/8
95-00047-52-360B	1/2 Ball Nose For Wood Plastics Aluminum	1-1/8	1/2

Critical Technical Variations to Note:

The 1/8" Variations (244B vs. 240B): Note that 52-244B features a uniform 1/8" straight shank (the shank matches the cutting edge), whereas 52-240B utilizes a rigid 1/4" stepped shank. If your CNC spindle predominantly runs standard 1/4" collets without sub-sleeves, the 52-240B allows you to cut a 1/8" path without changing out your collet infrastructure.
The Final Incomplete Part Number: Your final line cuts off at 95-00047-52-360B. Per the manufacturer specs for this specific sequence, this matches the 1/2" heavy contouring bit listed at the bottom of the reference table.
