Selecting the most suitable blade or router bit for your Colex Sharpcut is entirely dependent on the type of material you're working with. This versatile machine requires the appropriate tool to ensure clean, precise results and to avoid issues such as melted plastic, splintered wood, or rough edges.

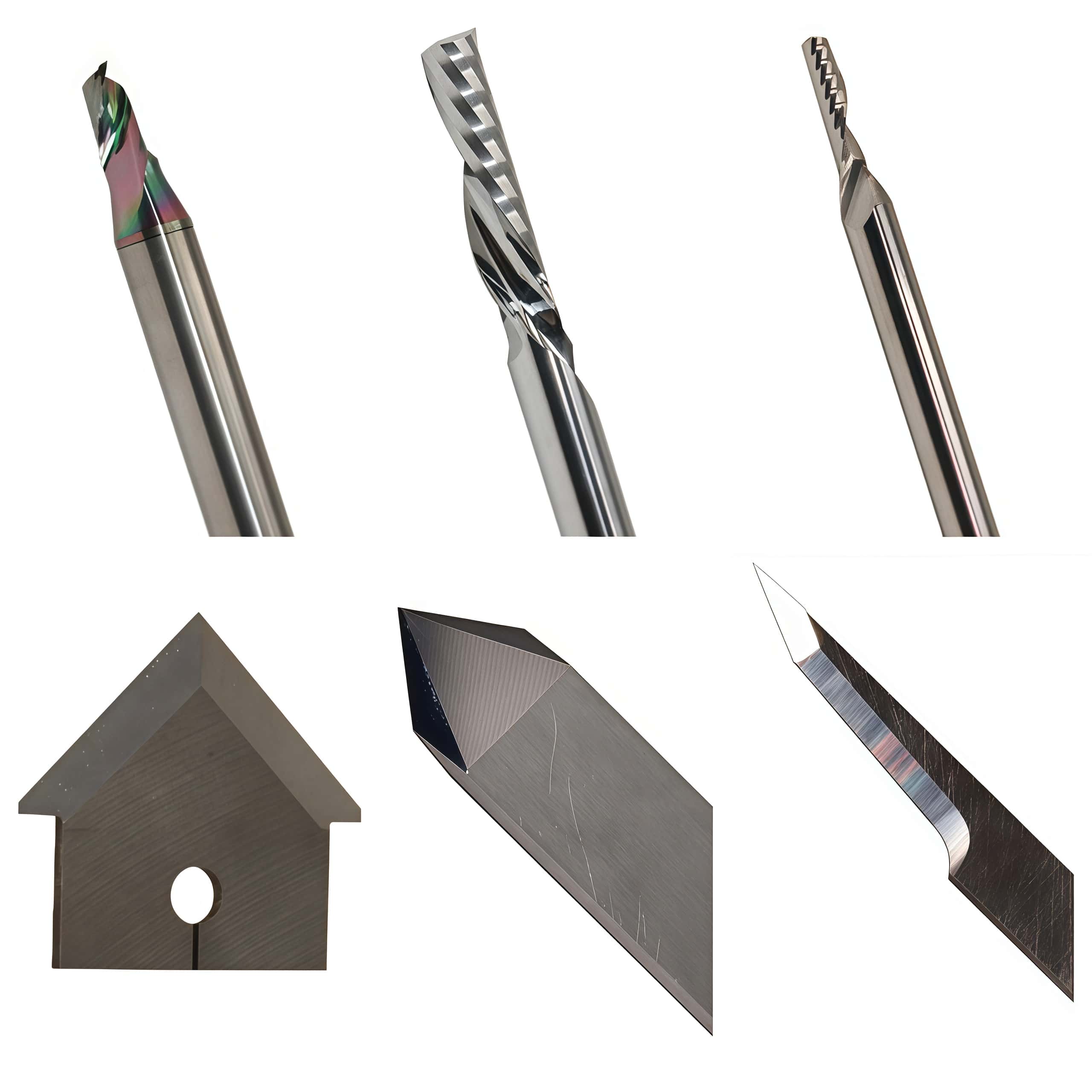

Recommended Blades for Knife Cutting
For soft or flexible sheet materials, the utilizes several knife options:
- Double Edge Blade (T00313 / Z11): This tungsten carbide blade is a versatile option for cutting canvas, hard foam, self-adhesive vinyl, and magnetic foil. Its double-edged design ensures prolonged durability and is equivalent to the Zund Z11.
-Oscillating Blade (T00421 / Z21): Ideal for corrugated materials, foam board, and Styrofoam up to 11/16" thick. It provides precise cuts on materials prone to crushing under a fixed blade.
- Intricate Detail Blade (T00420 / Z20): A thin, delicate tool tailored for complex patterns and small-radius cuts.
-Heavy Duty Rotary Blade (T00362):Perfect for fabrics, textiles, and other porous materials requiring a rolling cut to prevent snagging.
Recommended Router Bits for Rigid Materials
When working with rigid materials like acrylic, ACM (Aluminum Composite Material), or wood, router bits are essential for achieving clean finishes:
- Acrylic & Plastics:Single O-Flute bits (e.g., T00494) efficiently remove chips to prevent melting or re-fusion of the material during cutting.
- Aluminum Composite (ACM/Dibond):Single-flute upcut bits such as the Rs404 with NeoGuard coating are specially designed to deliver superior finishes on layered materials.
- Wood & Plywood:
- Upcut Spiral (T00508):Best for softwoods and hardwoods where quick chip removal is critical.
- Compression Bit (T00558):Designed for plywood and laminated materials, it minimizes splintering by drawing fibers toward the material's center, ensuring clean edges on both sides.
- 3D Routing & Sign Foam: For 3D carving and smooth contours, choose a Ball Nose bit (T00555) with DLC coating.
By carefully selecting the appropriate cutting tool for your material, you can maximize efficiency and achieve professional results
Tool Selection Quick Reference
| Material | Tool Type | Recommended Part |
|---|---|---|
| Vinyl / Paper | Kiss-Cut Blade | T00212 / T00213 |
| Coroplast / PVC | Universal Single Edge | T00330 |
| Foam Board | Oscillating Knife | T00421 |
| Aluminum | 1-Flute Upcut Bit | T00499 |
| MDF / Plywood | Carbide/Compression | T00501 / T00558 |
-
