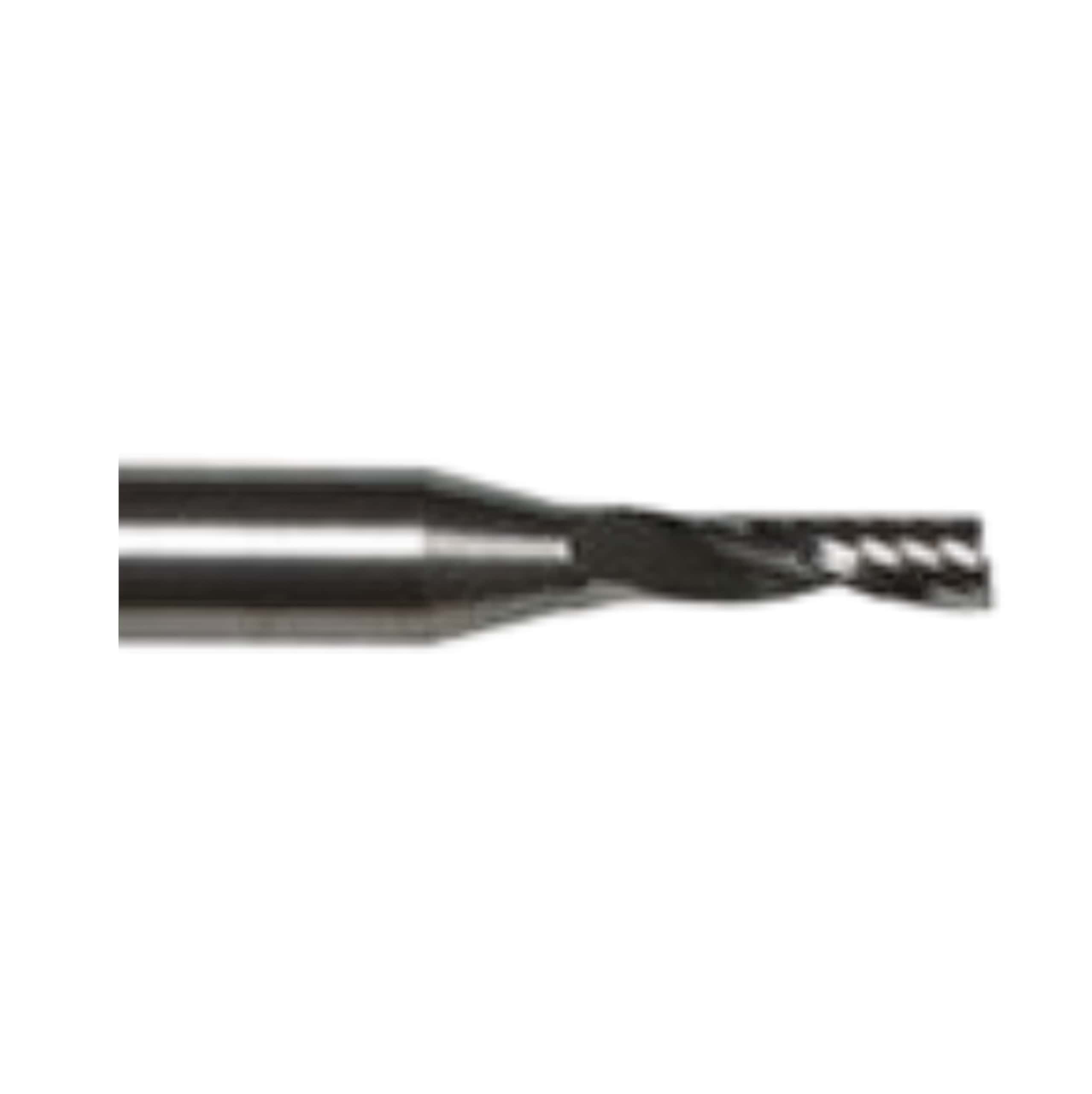

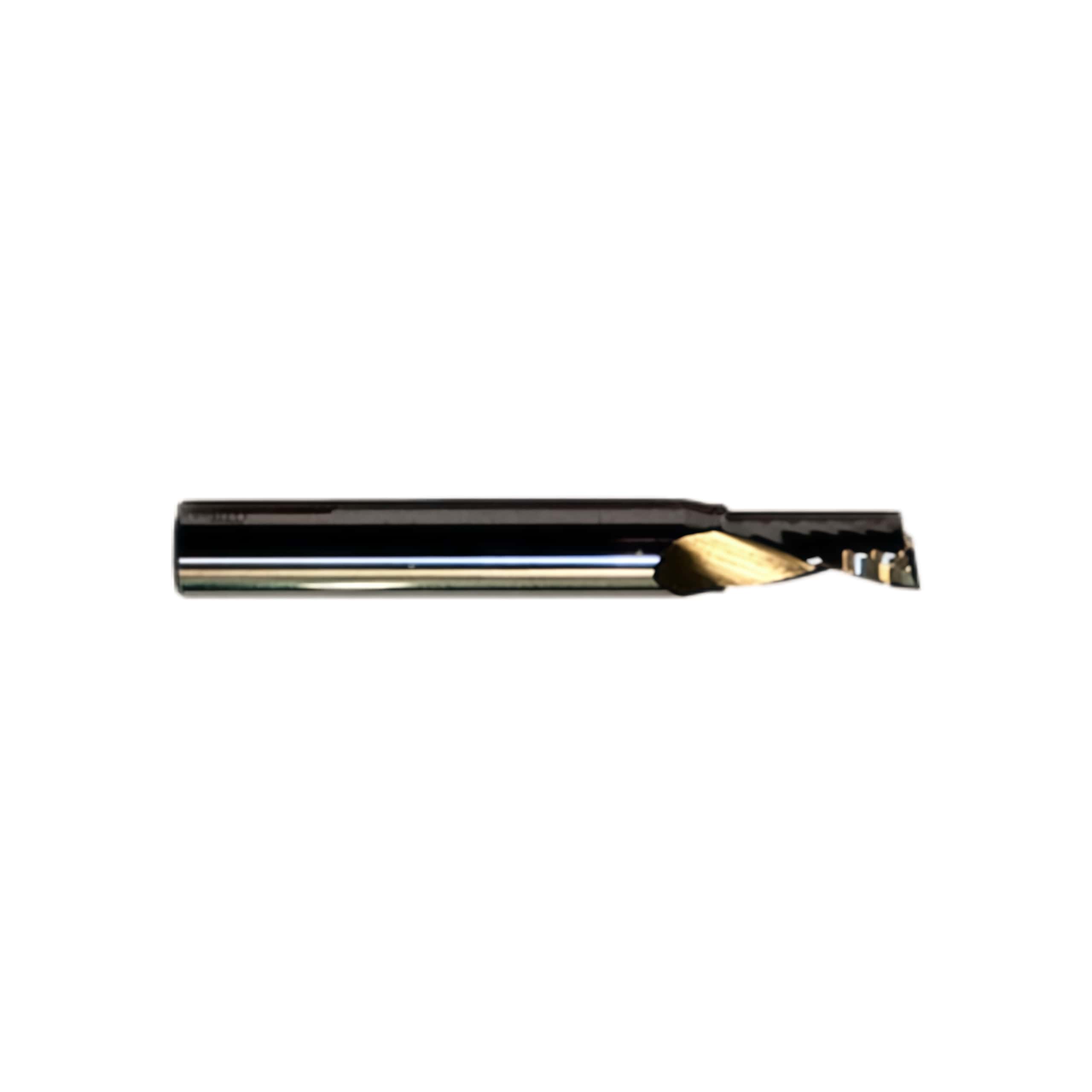

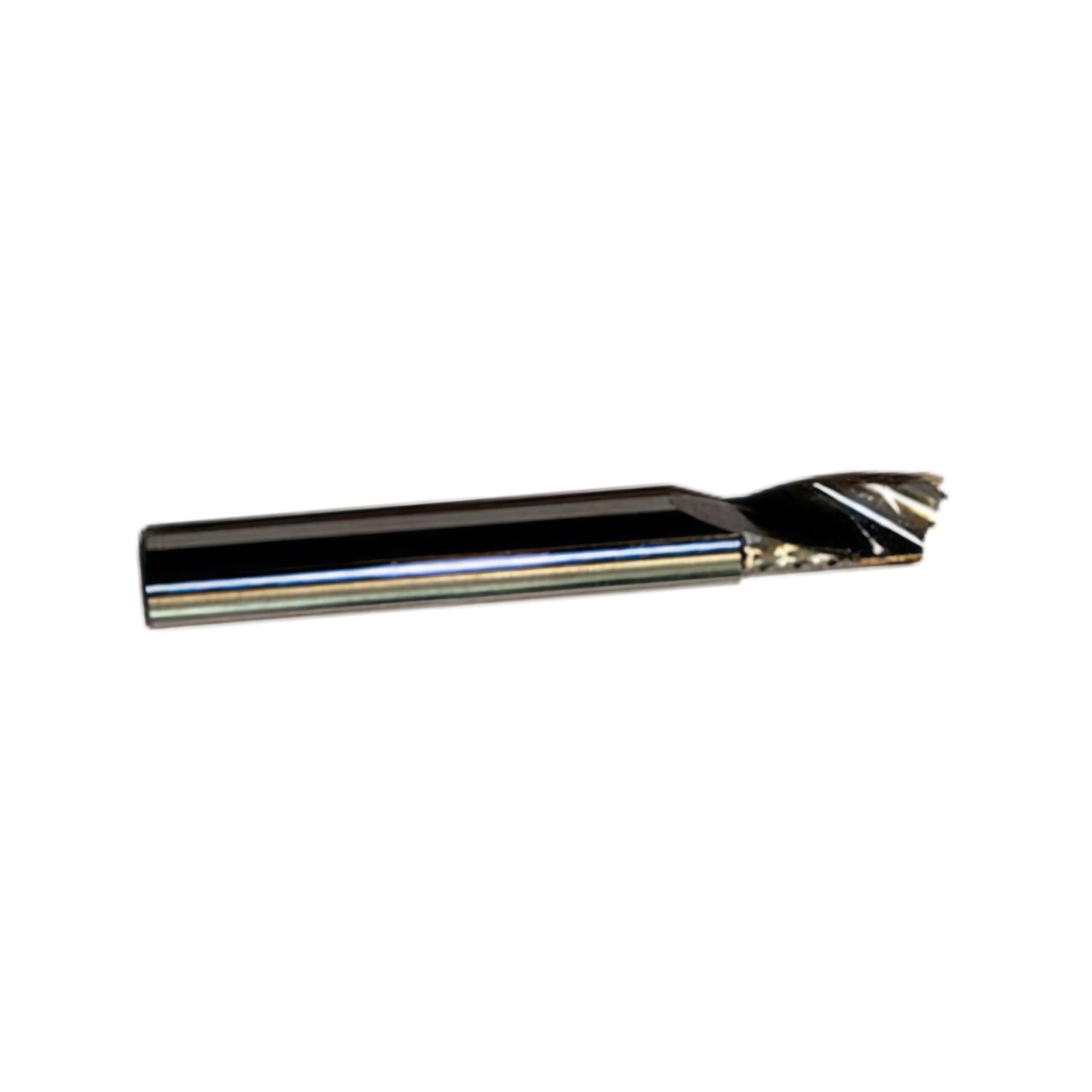

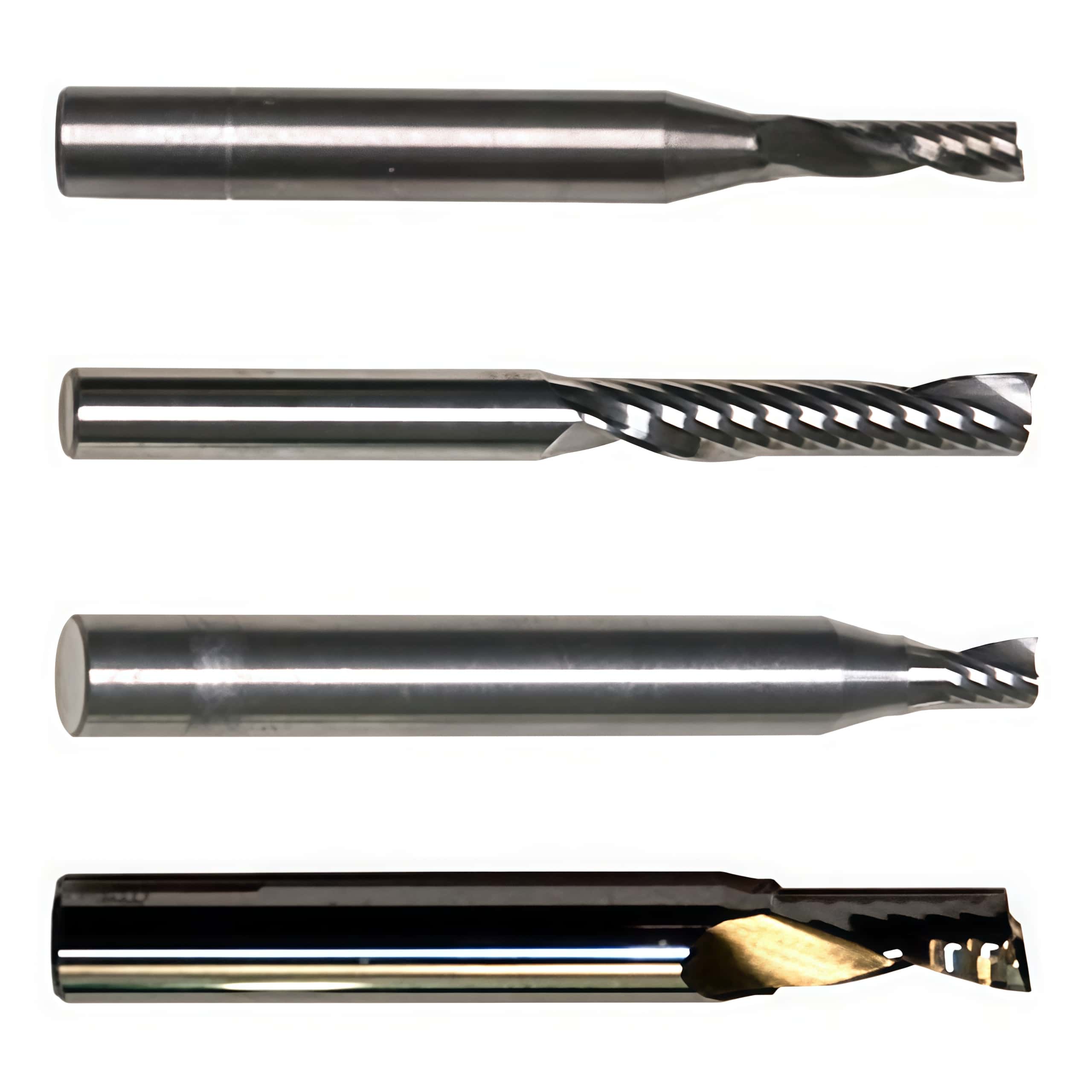

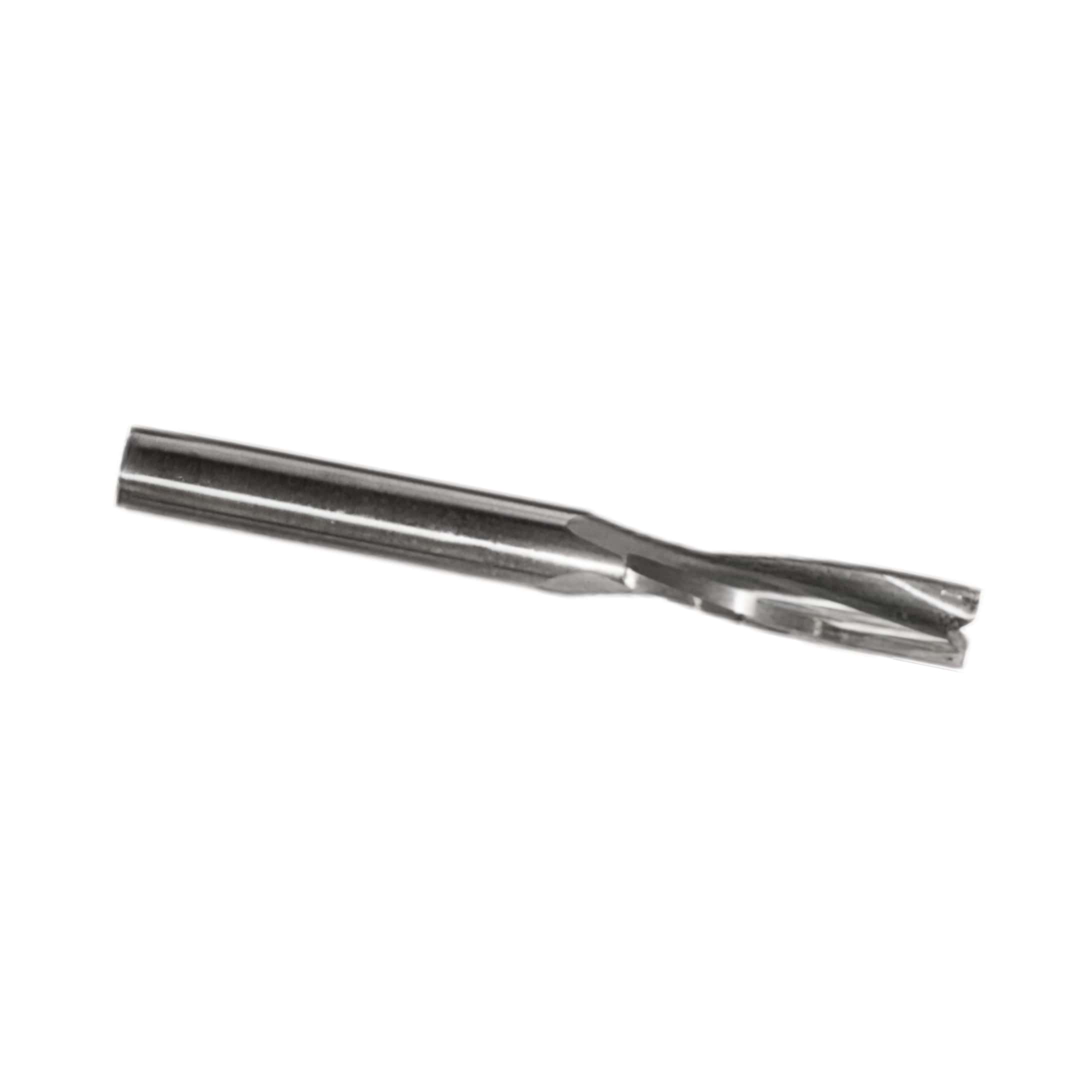

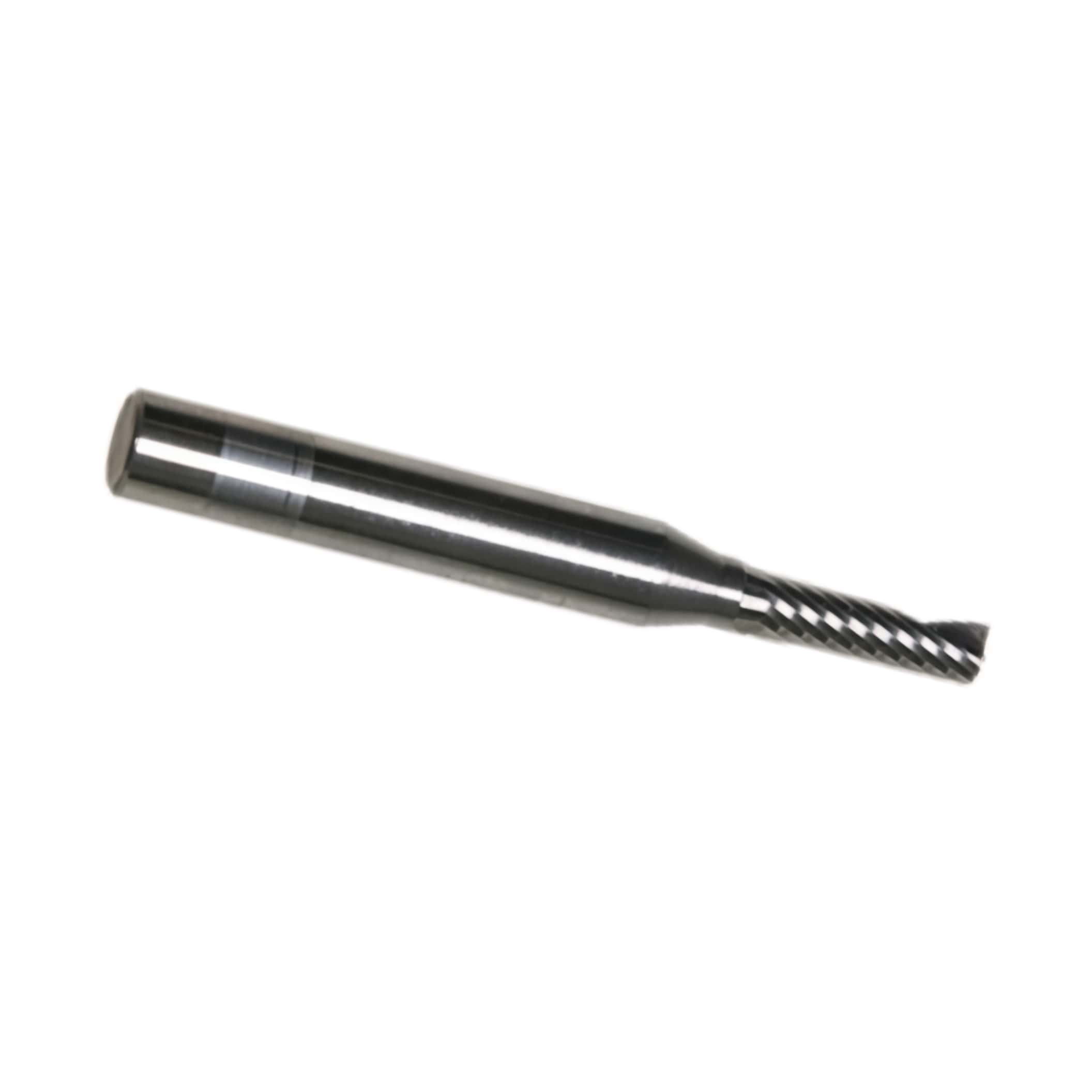

Esko Kongsberg 6mm Multi-Purpose, Up Cut Milling & Router Bits

Esko Kongsberg 6mm multi-purpose, up-cut milling and router bits are high-performance solid tungsten carbide tools engineered for digital flatbed cutting tables. Operating on standard 6mm shank architecture, these bits fit the High-Power Milling Unit (HPMU) and MultiCUT-HP tool heads to clear chips … Enquire now

Description

Esko Kongsberg 6mm Multi-Purpose, Up Cut Milling & Router Bits

Deciphering the Part Number Nomenclature

BIT-MU: Multi-Purpose Series
S / D: Single Flute / Double Flute
06: 6mm Shank Diameter
First 2 Digits: Cutting Edge Diameter (\(d\) in mm; e.g., 20 = 2.0mm)
Next 2 Digits: Flute Length / Maximum Cut Depth (\(M\) in mm; e.g., 06 = 6mm)
Final 2 Digits: Total Bit Length (\(L\) in mm; e.g., 50 = 50mm)
C1 Extension: Specialized longevity coating for highly abrasive applications.

	BIT-MUS06-2006-50 G42437913
	BIT-MUS06-2506-50 G42443531
	BIT-MUS06-3006-50 G42443549
	BIT-MUS06-3011-50 G42437905
	BIT-MUS06-3512-50 G42443556
	BIT-MUS06-3014-50 G42459537
	BIT-MUS06-4006-50 G42443564
	BIT-MUS06-4022-50 G42443572
	BIT-MUS06-5012-50 G42451062
	BIT-MUS06-5022-58 G42443598
	BIT-MUS06-5020-52 (i-3880) G42458802
	BIT-MUS06-6012-50 G42451070
	BIT-MUS06-6022-58 G42442715
	BIT-MUS06-6032-64 G42438077
	BIT-MUD06-4016-64 G42455857
	BIT-MUS06-4012-50 G42437863
	BIT-MUS06-4012-50C1 G42460824
	BIT-MUS06-2006-50C1 G42451096
	BIT-MUS06-3006-50C1 G42451104
	BIT-MUS06-4006-50C1 G42451112
	BIT-MUD06-6025-64 G42455865
