Summa Tool Code (Full Name) Naming Rules

Each Summa router tool is labeled with a string like D6/6 L58/22 1FL UC BAL MP, which serves as a code containing its physical specifications. By decoding this string, you can quickly grasp all the tool's key parameters.

• D (Shank/Cutting Diameter) : For example, D6/3 it means that the shank diameter is 6mm (can be directly inserted into a standard collet), and the cutting edge diameter is 3mm (stepped shank design, no need to change collet when changing tools).
• L (Length / Cut Depth) : For example, L50/12 it means that the total length of the tool is 50mm and the effective cutting length (maximum cutting depth) is 12mm .
• FL (Flute) : Number of blades. Most Summa advertising-grade router blades are 1FLsingle-bladed. A single blade has a large chip groove, which can greatly prevent hard plastics and aluminum composite panels from melting and sticking together during high-speed cutting.
• UC / DC (Cut Direction) :UC Represents Up Cut , which powerfully removes chips outward and upward during high-speed rotation to prevent clogging and is most commonly used for through-cutting; DCRepresents Down Cut , which presses chips downward and is used for surface grooving or to prevent tearing of the surface of thin plates.
• BAL (Balanced) : Dynamic balancing optimization . Specifically designed for high-frequency spindles operating at speeds above 20,000 RPM, eliminating micro-vibrations and resulting in mirror-smooth cutting edges.
• MP (Multi-Purpose) : Multi-purpose , uncoated high-purity cemented carbide (white steel color).
• CT (Coated) : Hard anti-friction coating . The surface is dark or iridescent, specifically designed to insulate against processing heat, supporting ultra-high-speed cutting and significantly extending its lifespan.

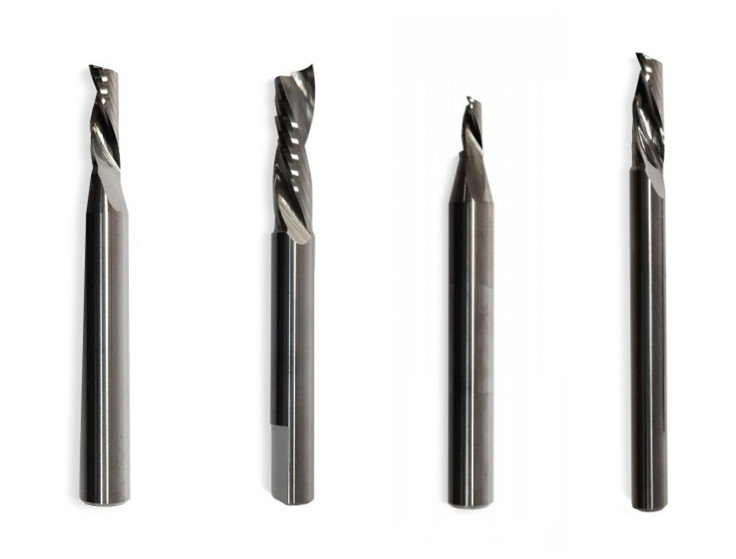

Summa Router Bits – Multipurpose

The following Multi-purpose Summa Router Bits are best for aluminum composites, wood products and laminates, as well as PVC:

• 500-9850 D3/3 L38/11 1FL UC MP
• 500-9852 D4/4 L50/12 1FL UC MP
• 500-9854 D6/3 L50/6 1FL UC MP
• 500-9856 D6/4 L50/12 1FL UC MP
• 500-9857 D6/6 L50/12 1FL UC BAL MP
• 500-9858 D6/6 L58/22 1FL UC BAL MP
• 500-9872 D3/3 L38/6 1FL UC MP
• 500-9873 D4/4 L50/6 1FL UC MP
• 500-9874 D4/4 L50/14 1FL UC MP
• 500-9875 D6/2 L50/6 1FL UC MP
• 500-9876 D6/3 L50/11 1FL UC MP
• 500-9877 D6/4 L50/6 1FL UC MP
• 500-9878 D6/6 L50/12 1FL UC MP
• 500-9879 D6/3 L50/6 1FL DC MP
• 500-9880 D6/4 L50/12 1FL DC MP
• 500-9881 D6/6 L50/12 1FL DC MP
• 500-9866 D6/3 L50/11 1FL DC MP

Coated Multi-Purpose Bits

Coated bits cut faster and last longer. Aluminum composites up to 4mm thick can be processed in a single pass, at speeds of up to 150 mm/s.

• 500-9865 D6/6 L50/12 1FL UC BAL CT
• 500-9867 D6/3 L50/6 1FL UC CT
• 500-9868 D6/4 L50/12 1FL UC CT
• 500-9869 D6/2 L50/6 1FL UC CT
• 500-9870 D6/4 L50/6 1FL UC CT

Summa Router Bits for Cutting Acrylics

This list of bits are specially engineered for efficient cutting in acrylics.

• 500-9882 D6/2 L50/6 1FL UC A
• 500-9883 D6/3 L50/6 1FL UC A
• 500-9884 D6/3 L50/11 1FL UC A
• 500-9885 D6/4 L50/8 1FL UC A
• 500-9886 D6/4 L50/12 1FL UC A
• 500-9887 D6/6 L50/12 1FL UC BAL A
• 500-9888 D6/6 L58/22 1FL UC BAL A

Specialty Summa Router Bits

• Compression Bit: Up cut and down cut in one, ideal for wood cutting
  500-9864 D6/6 L50/22 2FL UC/DC
• V-Groove Bit: Ideal for ACB materials
  500-9863 D6/10 L50/6 V Groove 2FL 90°
• Polishing bit: Provides a better surface finish in acrylic – for use with the High Frequency Router only
  500-9859 D6/6 L
